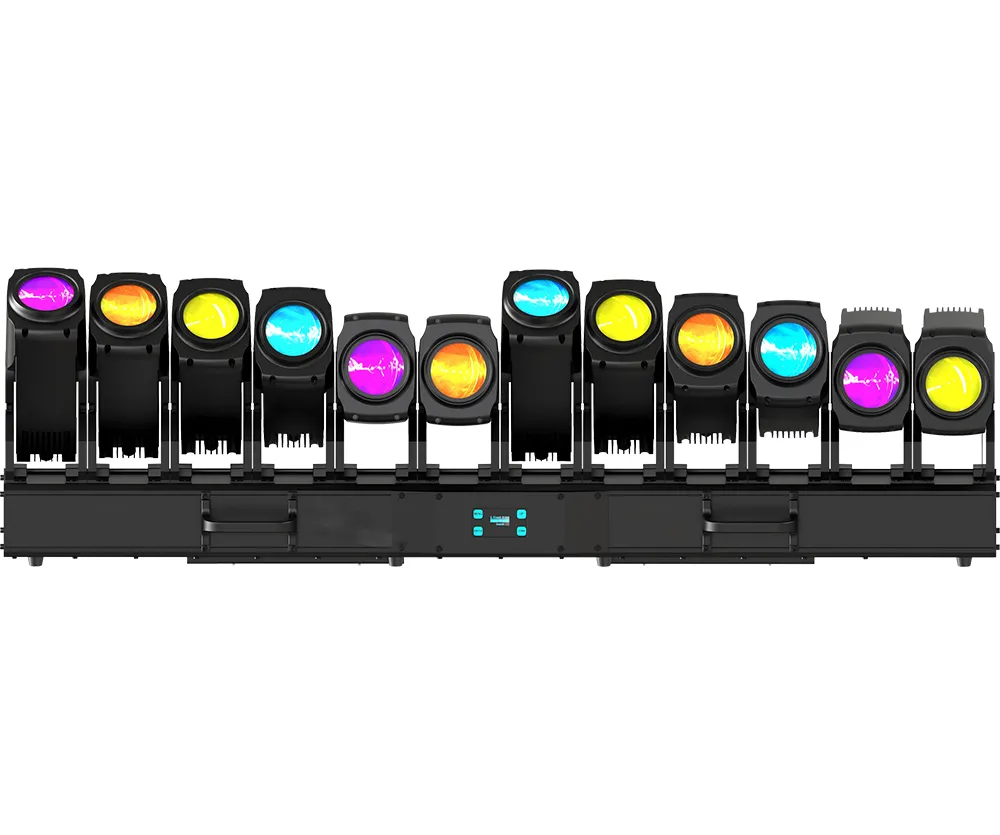

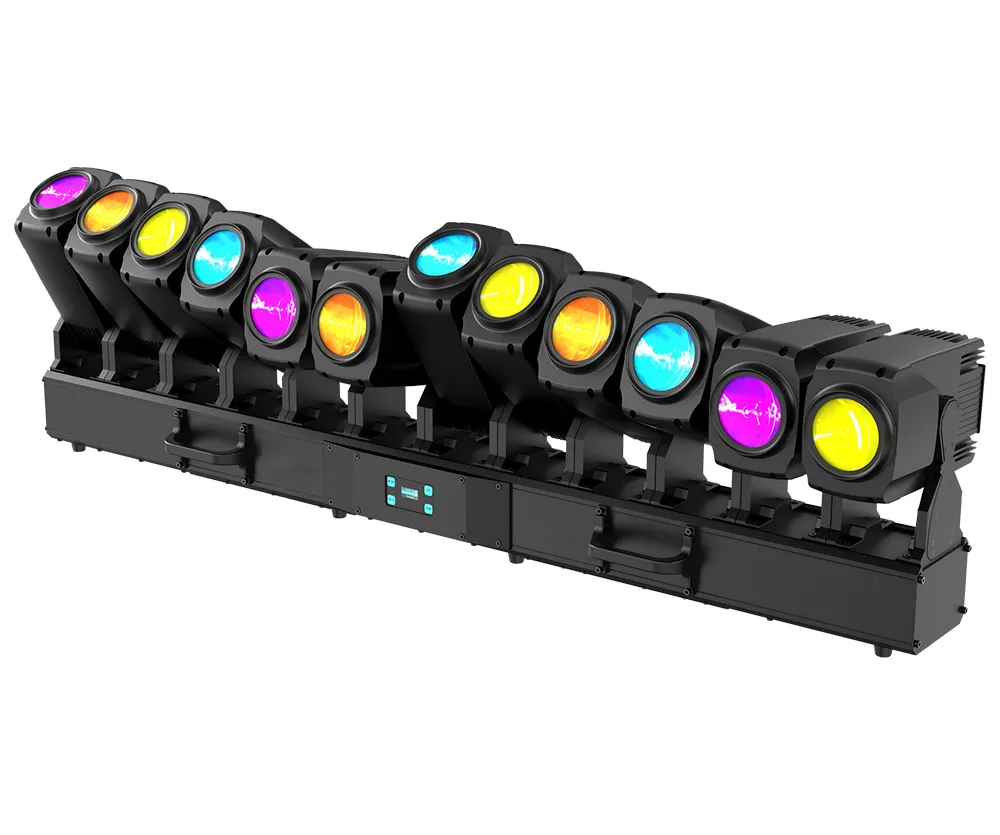

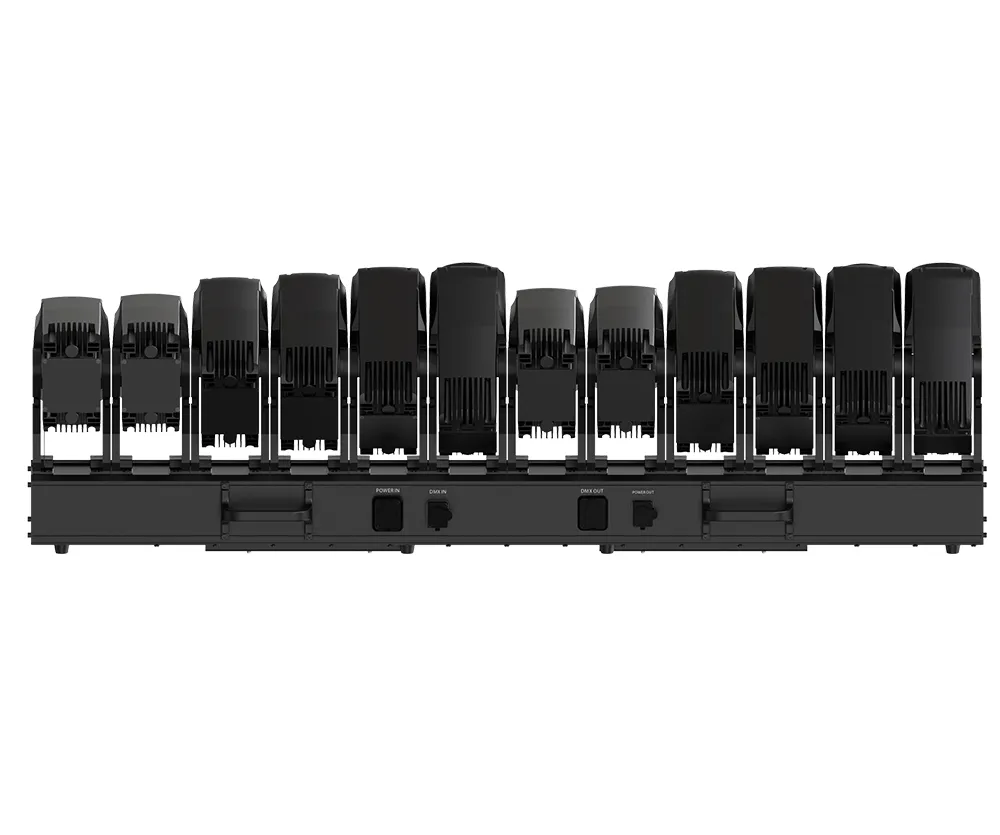

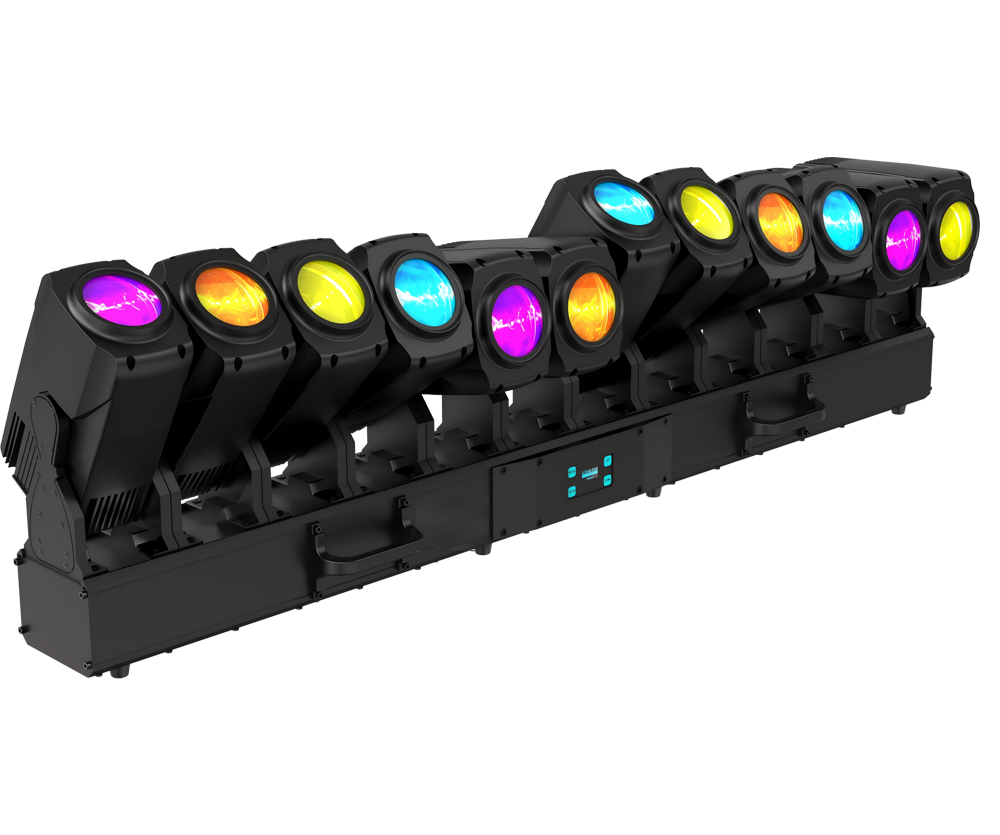

WaveMH1260
Light Source:
Input voltage: AC100-240V, 50/60Hz
Rated power: 790W
Light source:12LEDs (RGBW)4in1 each 60 W, (2.96 A)
LED Life: 50,000hrs
Color Temperature (range): 2700k to 8000 K
Lumens: 5,807 lmIlluminance (Spot) : 38,727 lux @ 5 m;
Illuminance (Flood) : 1,120 lux @ 5 m
Selectable PWM: 600, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz,15000Hz
Control and programming:
Signal interface: three-pin XLR (five-pin XLR optional)
Control mode: DMX512, RDM, Auto Mode, master-slave
Channel: 19CH/93CH/99CH/100CH
Movement:
Resolution: 8-16bit
Tilt movement: 220° Tilt movement marco 51types
Construction:
Product appearance: flame retardant, high temperature resistance,
Protection rate: IP65
Working environment: (-10 °C to 45 °C)
Display: OLED touch screen, Password lock screen protection
The screen settings include screen off, screen always on, screenflip
Power Input: Seetronic Powercon IP65
Power Output: Seetronic Powercon IP65
Data Connectors: 3-pin or 5pin IP65 XLR, Seetronic IP65
Front:two Humanized load-bearing handle
Back:two Humanized load-bearing handle
Installing hang bottom : (2) Omega brackets
Material: Aluminum die-cast+stainess Steel
Effect:
Zoom: 3°- 65°
Rigging:
Omega brackets fasteners for quick and convenient installation
Packaging:
Dimensions:1151x190x342 mm (Height is head 90 degrees)
Carton size:1220x461x261mm(1in1)
Carton size:1220x440x412mm(2in1)
Net Weight: 34 kg
Gross Weight: 36kg
