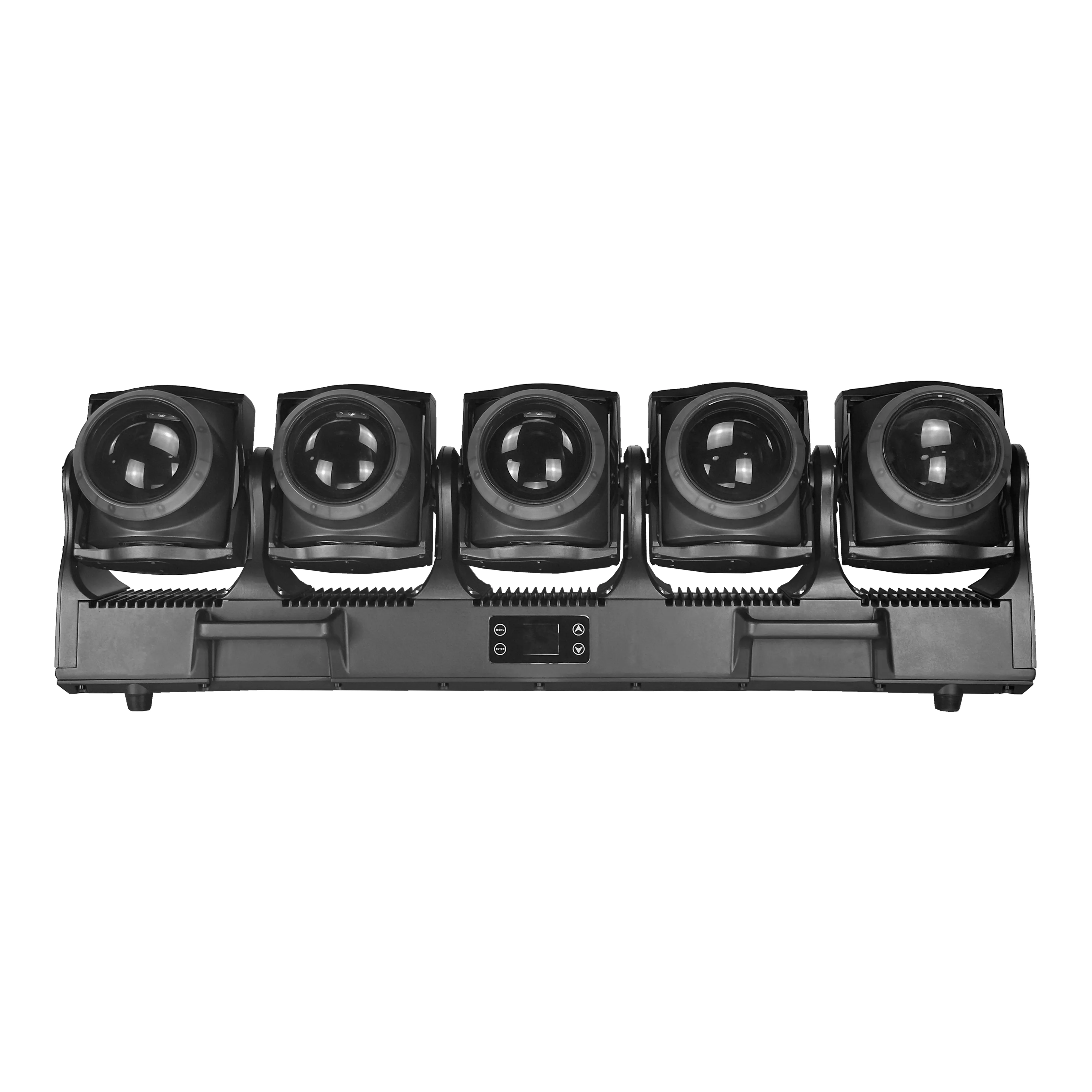

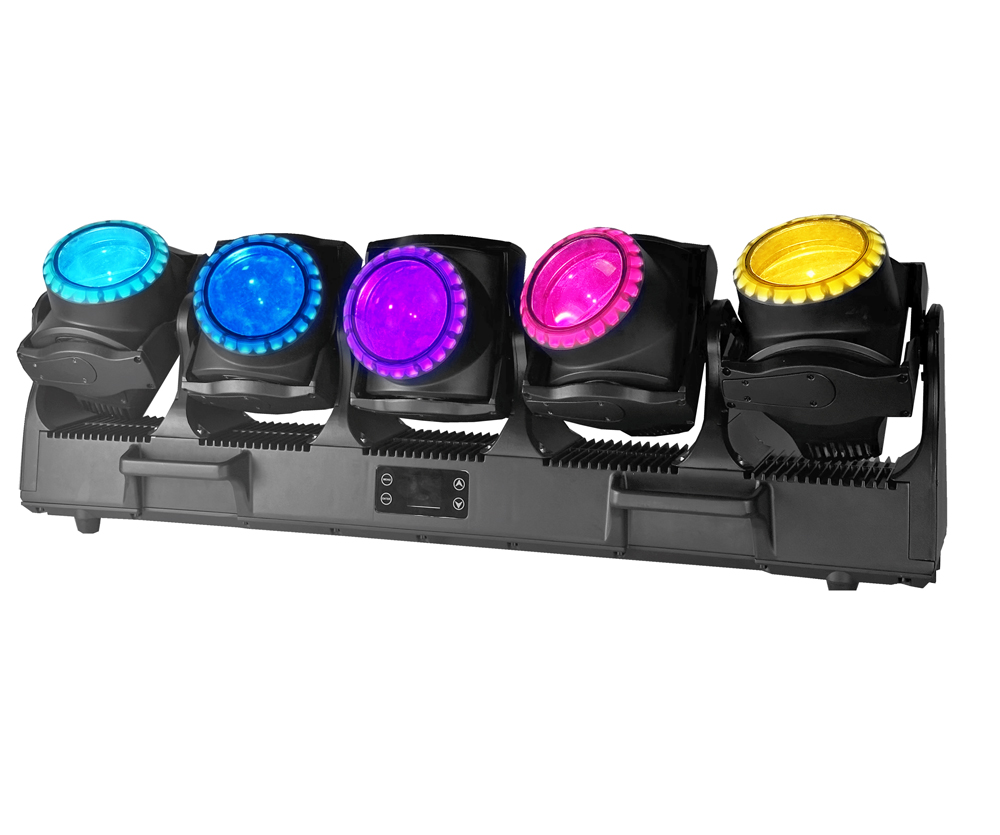

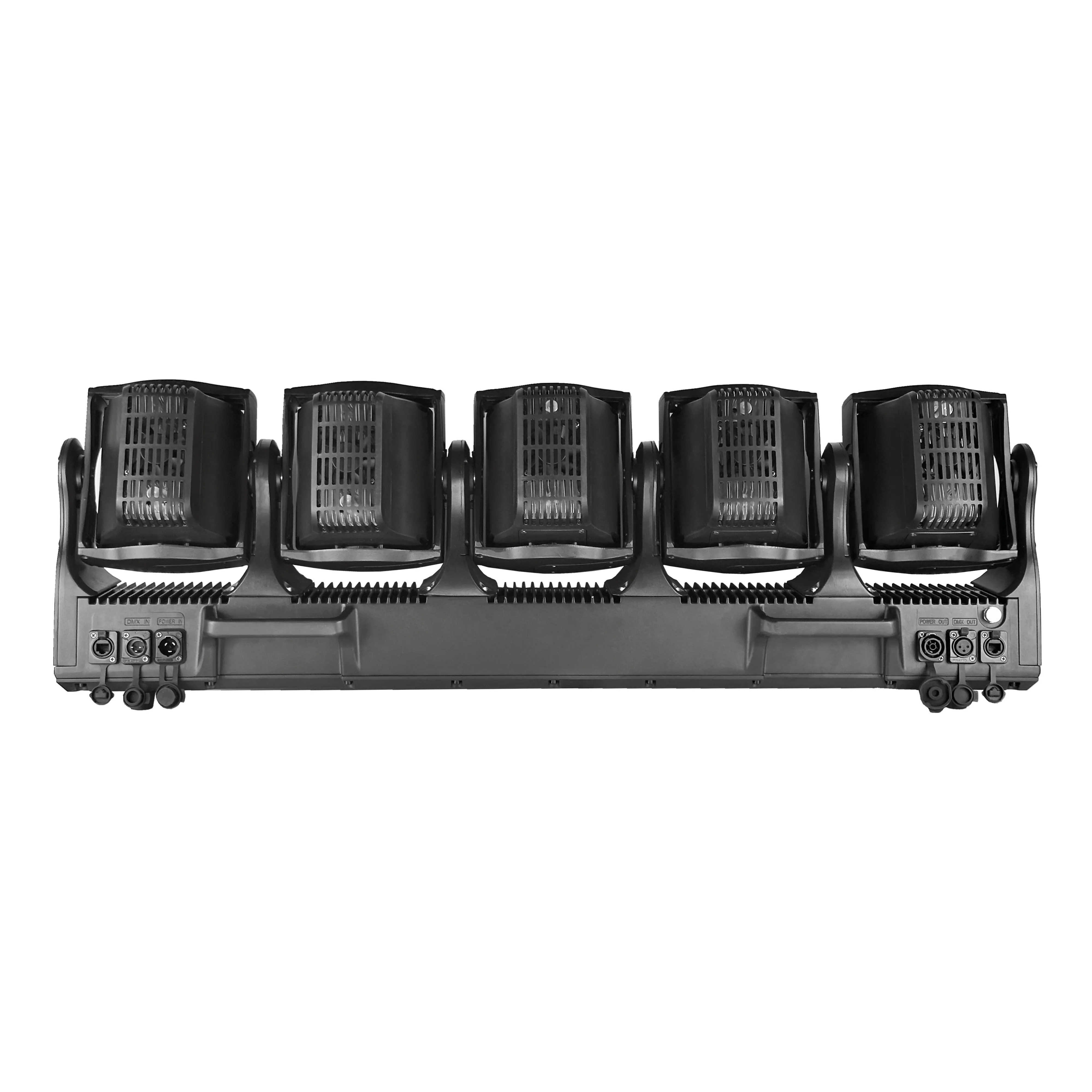

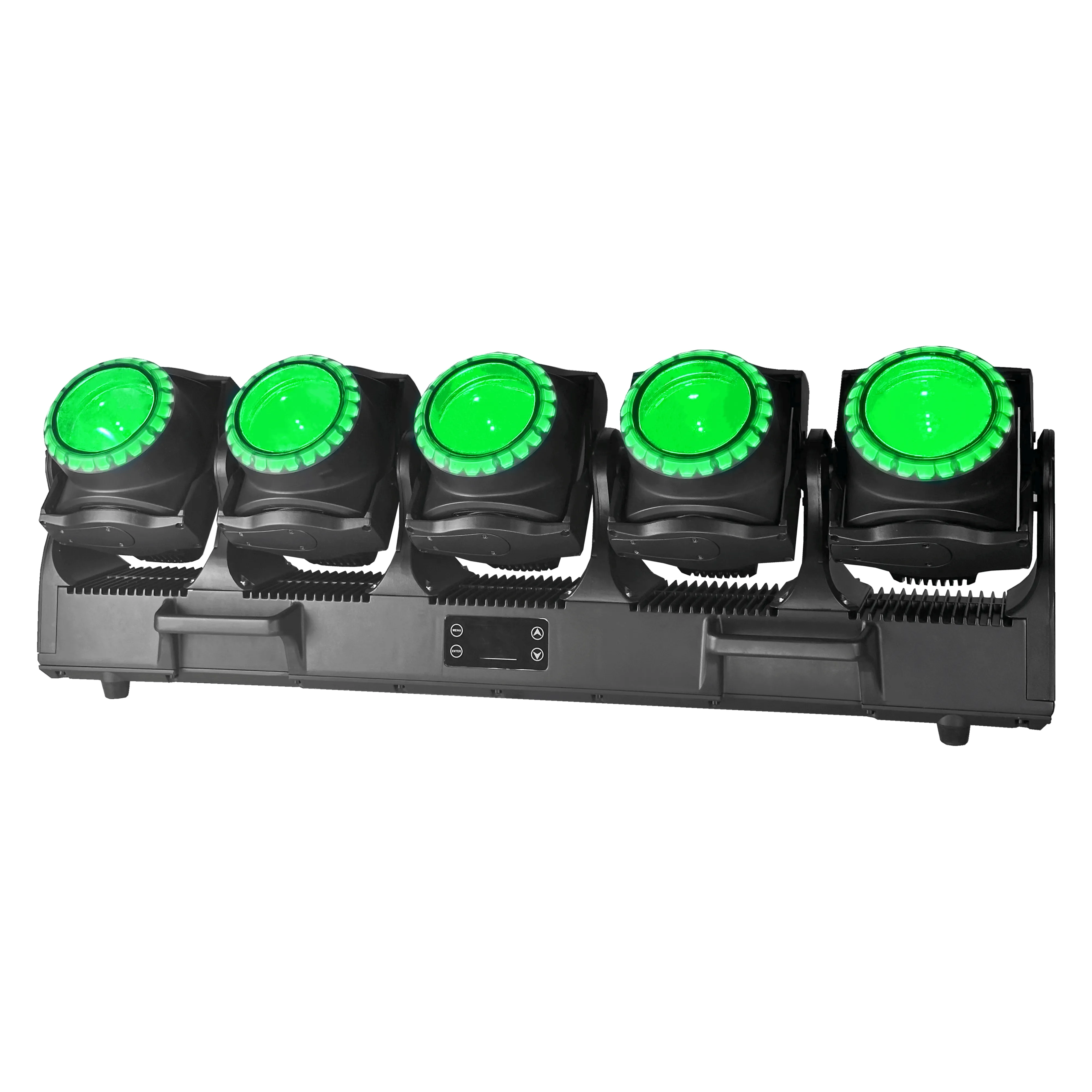

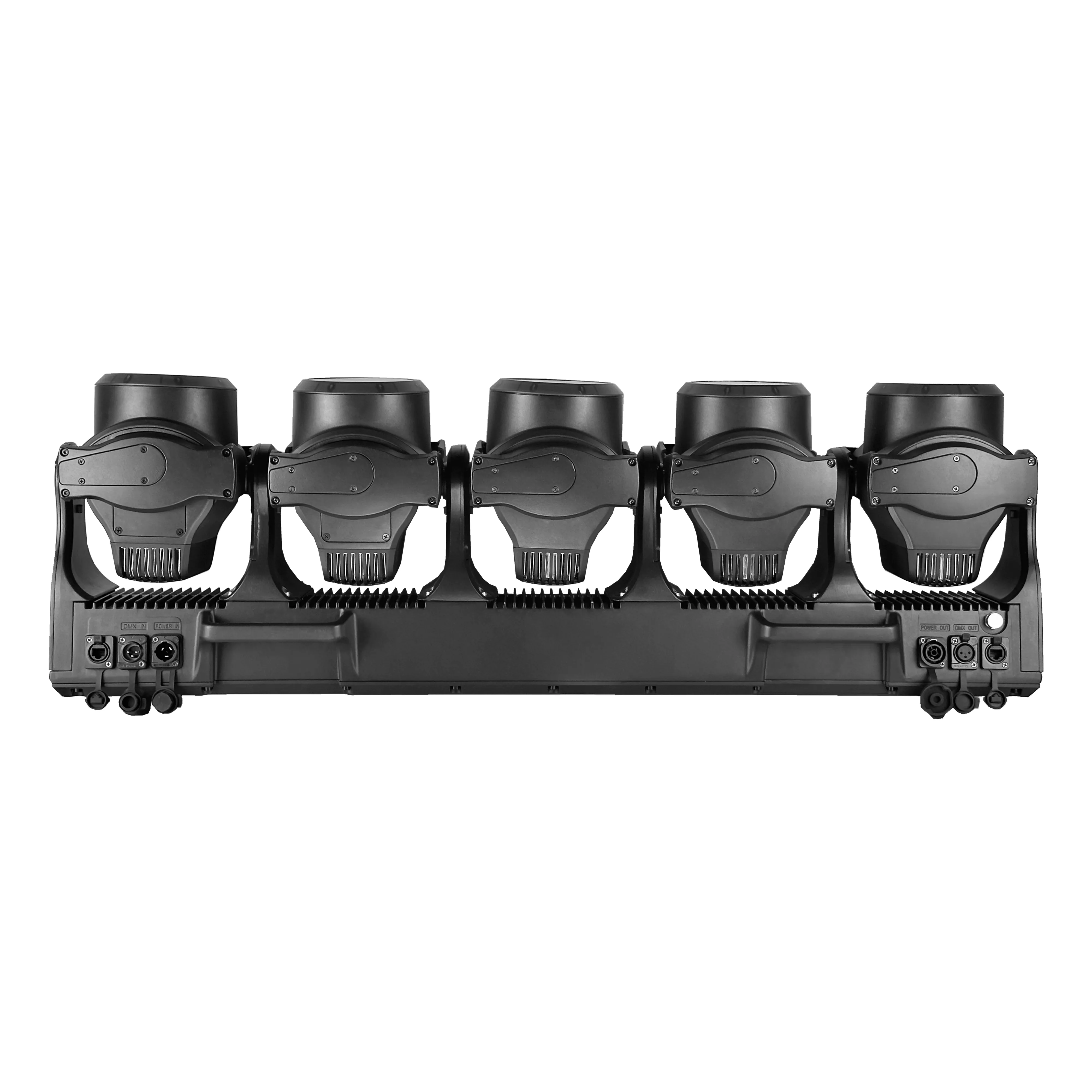

IP Tornado TB5
Light Source:
Input voltage: AC100-240V, 50/60Hz
Rated power: 935W
Light source: 5x120W RGBL LEDs
Outer Circle: 120x0.5W RGB LEDs
Total Lumen Output of Fixture: 13,000 lumens
LED Life: 20,000hrs
Control and programming:
Signal interface: three-pin XLR (five-pin XLR optional)
Control mode: DMX512, RDM, Auto Mode, master-slave
Channel: 21CH/41CH/71CH/75CH/85CH/170CH
Movement:
Pan movement: 59° Pan movement
Tilt movement: 221° Tilt movement
Construction:
Product appearance: flame retardant, high temperature resistance,
Protection rate: IP66
Working environment: (-10 °C to 45 °C)
Display: OLED touch screen, Password lock screen protection
The screen settings include screen off, screen always on, screenflip
Power Input: Seetronic Powercon IP65
Power Output: Seetronic Powercon IP65
Data Connectors: 3-pin or 5pin IP65 XLR, Seetronic IP65
Installing hang bottom : (2) Omega brackets
Material: Aluminum die-cast+stainess Steel
Effect:
Beam Angles: 3°-30°
Field Angles: 4°-35°
Can be spliced
Rigging:
Omega brackets fasteners for quick and convenient installation
Packaging:
Dimensions:1019x206x356 mm
Carton size:1090x470x330mm(1in1)
Net Weight: 26.4 kg
Gross Weight: 30.3kg
