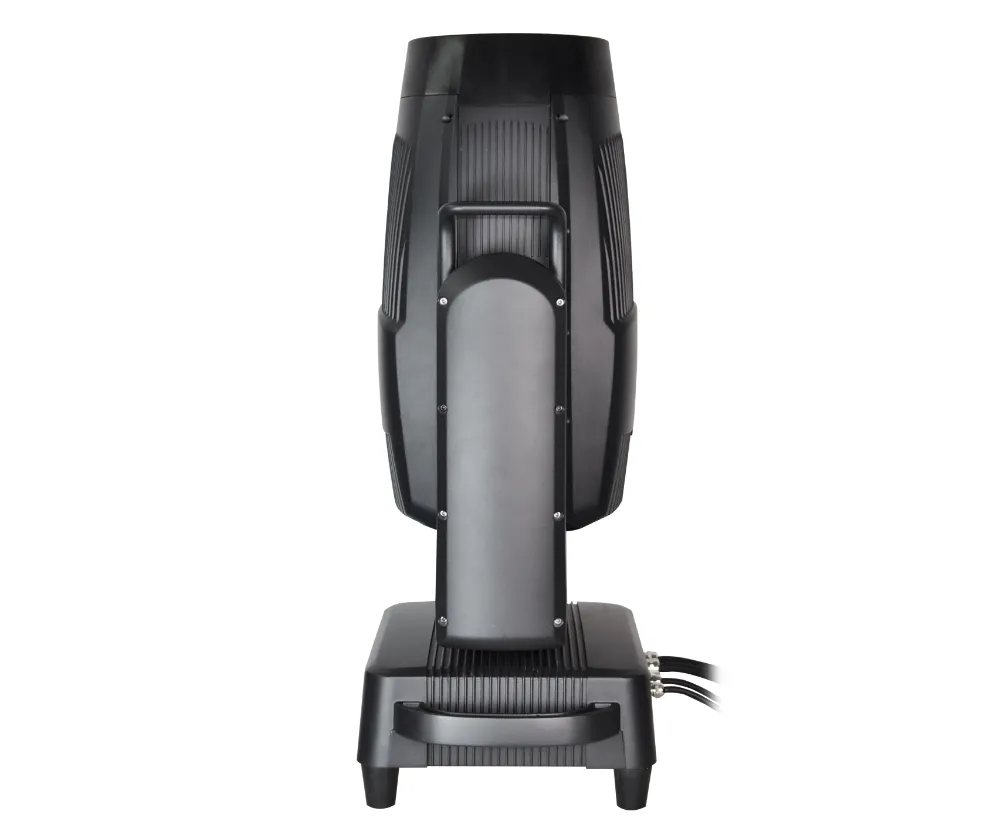

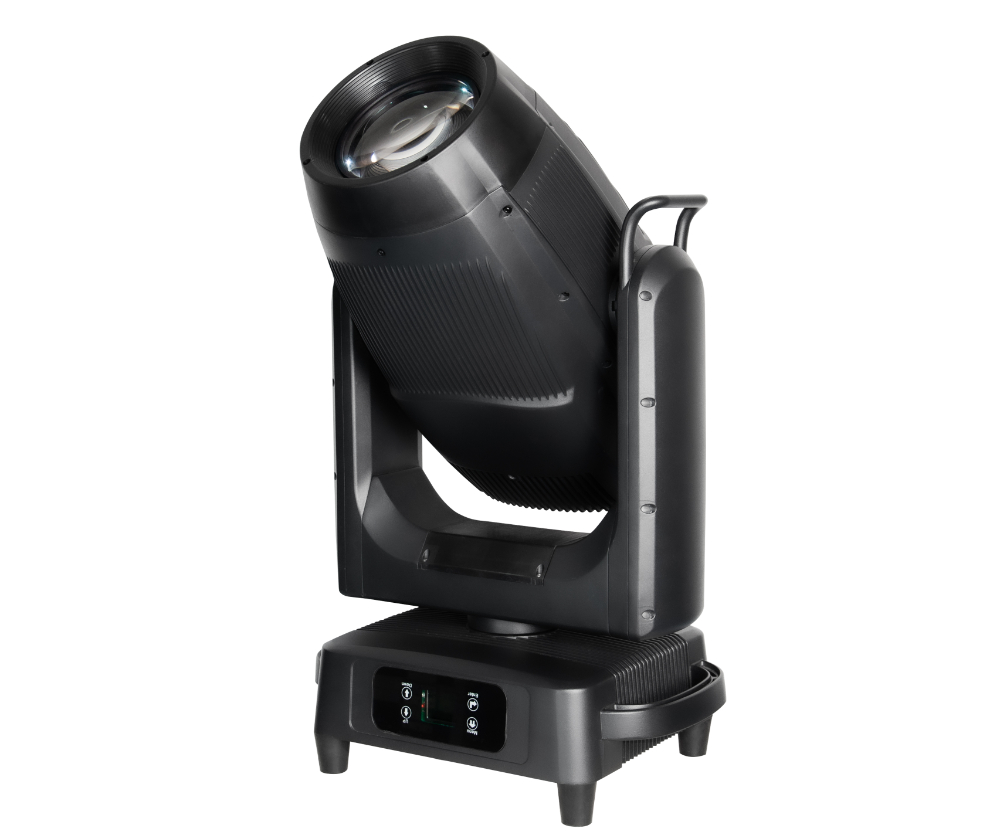

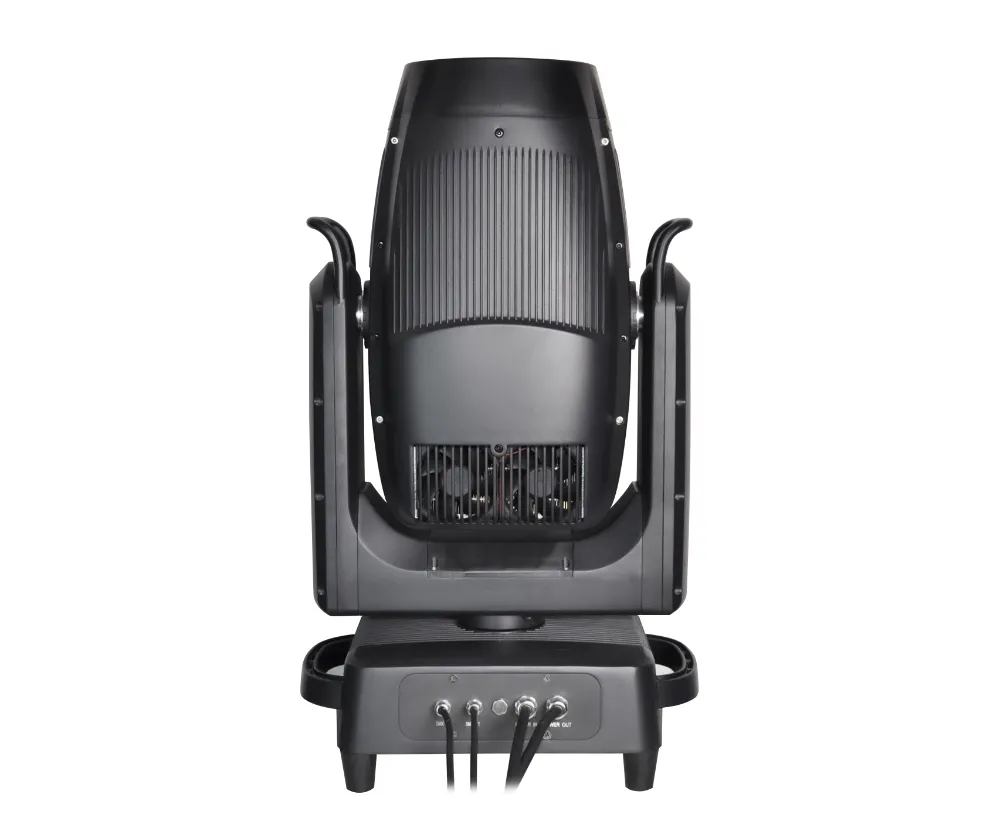

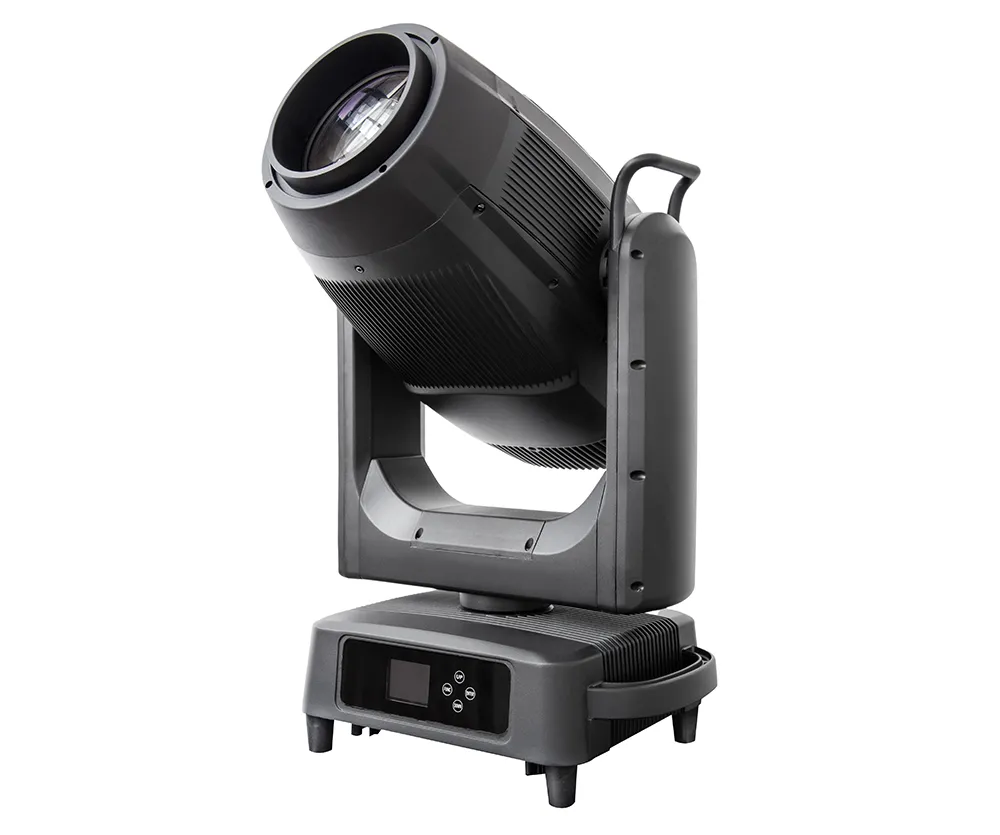

1000W IP LED BSWF Profile Moving Head

 Light Source:

Input voltage: AC100-240V, 50/60Hz

Rated power: 1200W

Light source: 960W LED module

LED life: 20,000 hours

Color temperature: 6500K

Color rendering index: Standard mode Ra>70, high CRI mode Ra>90

 Movement:

Pan: 540° (16 bit precision scanning)

Tilt: 270° (16 bit precision scanning)

Pan/Tilt: Five-phase motor with magnetic encoding positioning function

 Control and programming:

Signal interface: three-pin XLR (five-pin XLR optional)

Control mode: DMX512, RDM, Auto Mode, master-slave, Sound activation

Channel mode: 34CHs/39Chs/56CHs

 Construction:

Caliber: 138mm Frontal lens for greater performance

Display system: 2.8-inch touch LCD display, Chinese and English display, 180-degree rotation

Product appearance: flame retardant, high temperature resistance, folding clamp

Protection rate: IP66

Working environment: 0-45℃

 Effect:

Fixed color: 6colors + open position

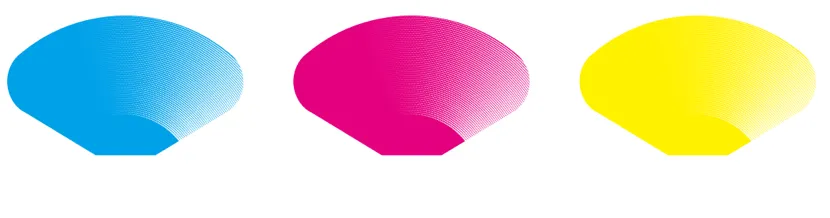

Color mixing system: independent CMY color mixing system

Color temperature adjustment: independent CTO 2500K-6500K linear adjustment

Prisms: 4-faced prism

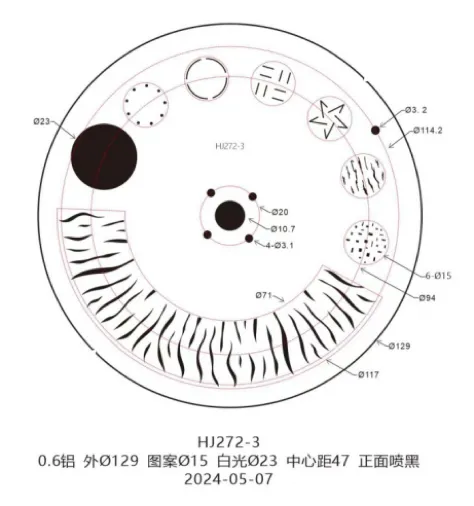

Fixed Gobo Wheel: 6 fixed gobos+Fire effect+open position

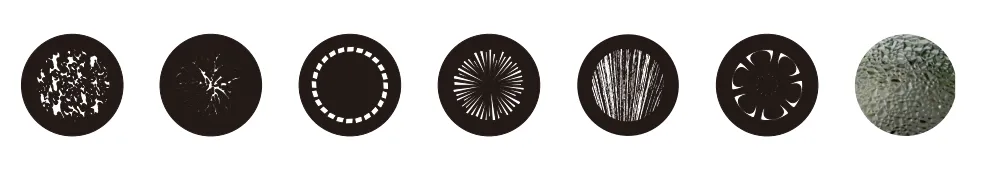

Rotating gobo Wheel: 7 Plug in gobos +open position

Framing system: 4 Individually positionable Shutter Blades, each piece can be closed separately and can be rotated +/- 120°

Frost system: 0~100% linear atomization

Iris system: 6%~100% smooth adjustment

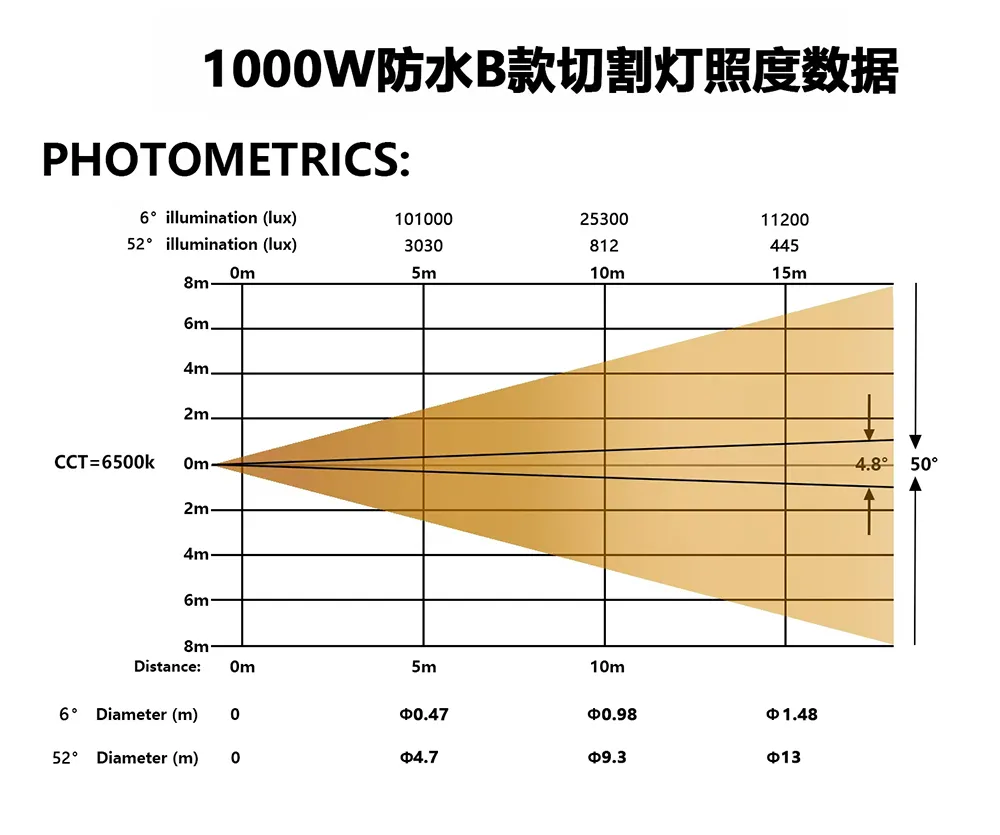

Beam Aperture: 4.8°~50° fast motorized linear zoom

Dimming system: 0-100% linear adjustment

Strobe system: the highest frequency can reach 25Hz, and random strobe and pulse strobe can be selected

 Rigging:

2 Omega brackets fasteners for quick and convenient installation, Integrated Folding Clamps

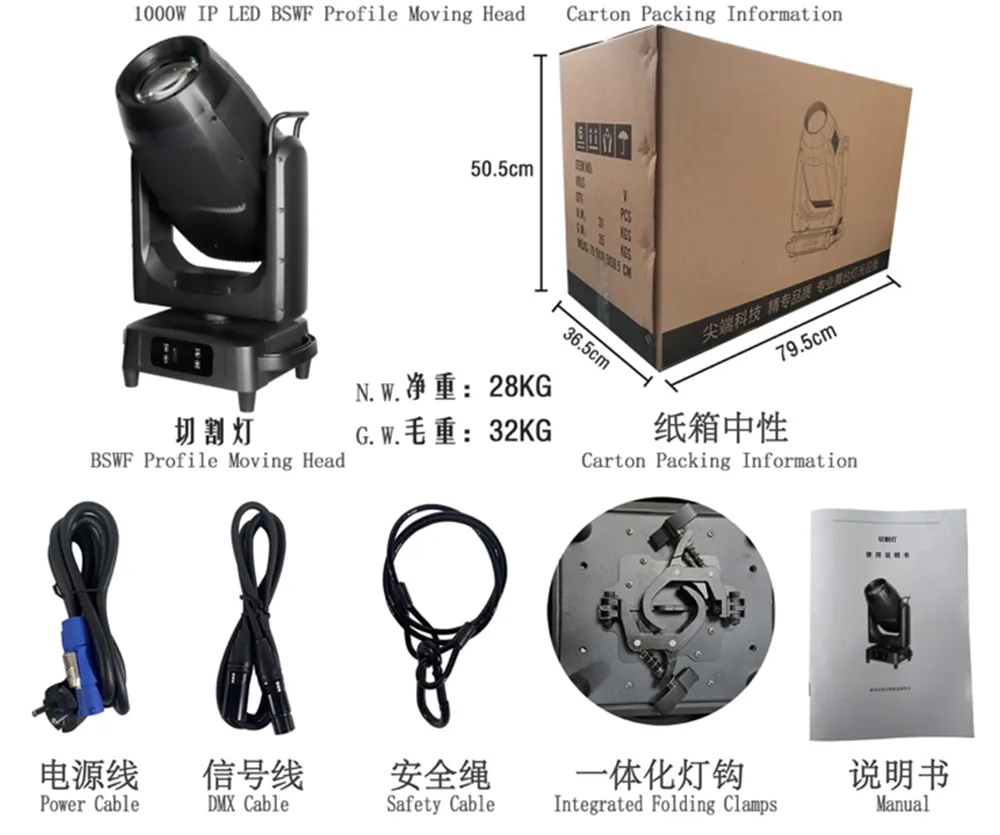

 Packaging:

Product size: 410*277*660(mm)

Carton size: 505*365*795 (mm)

Product net weight: 28KG

Product gross weight: 32KG
