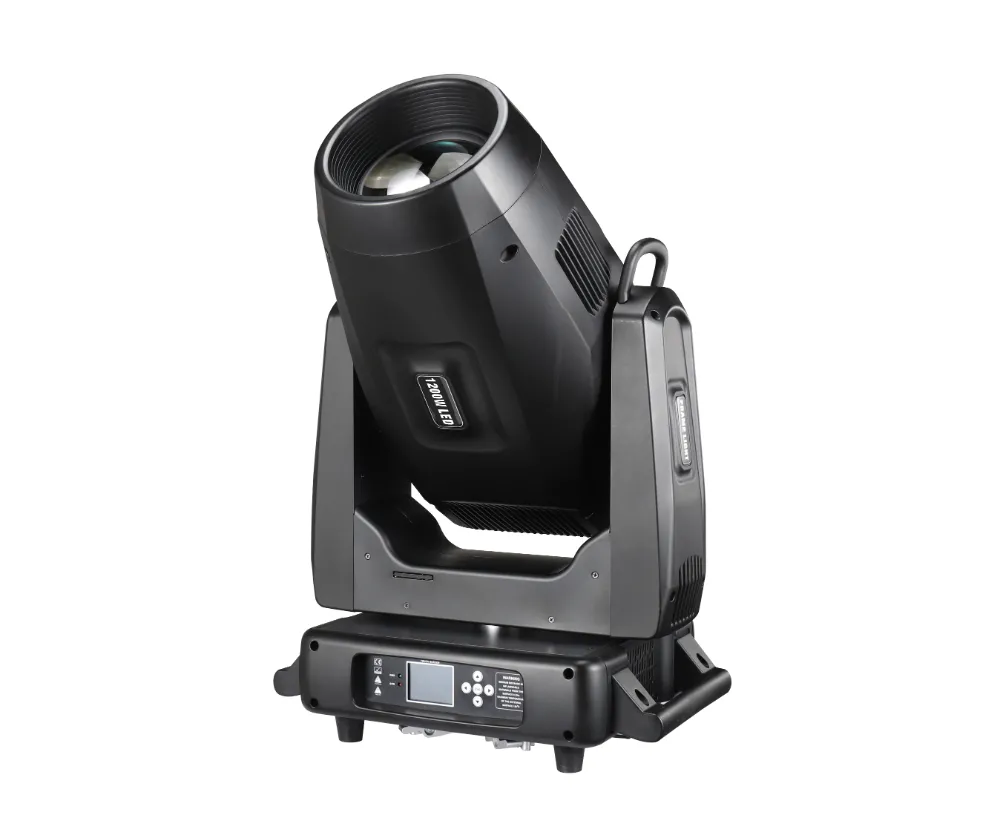

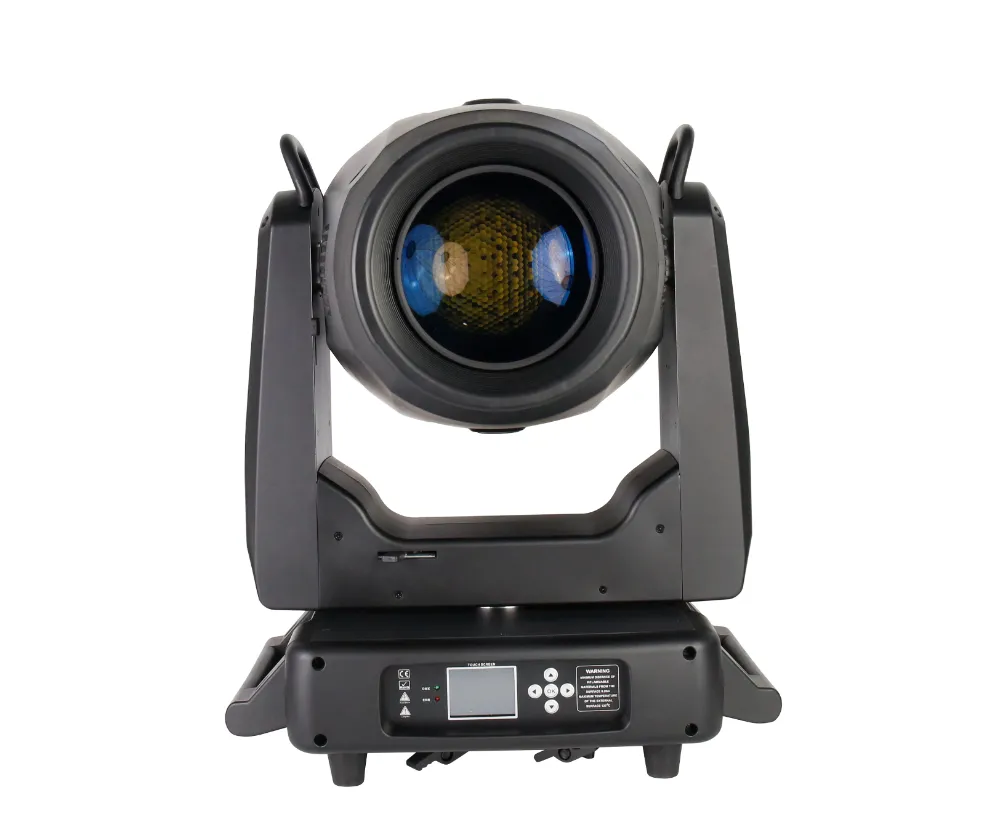

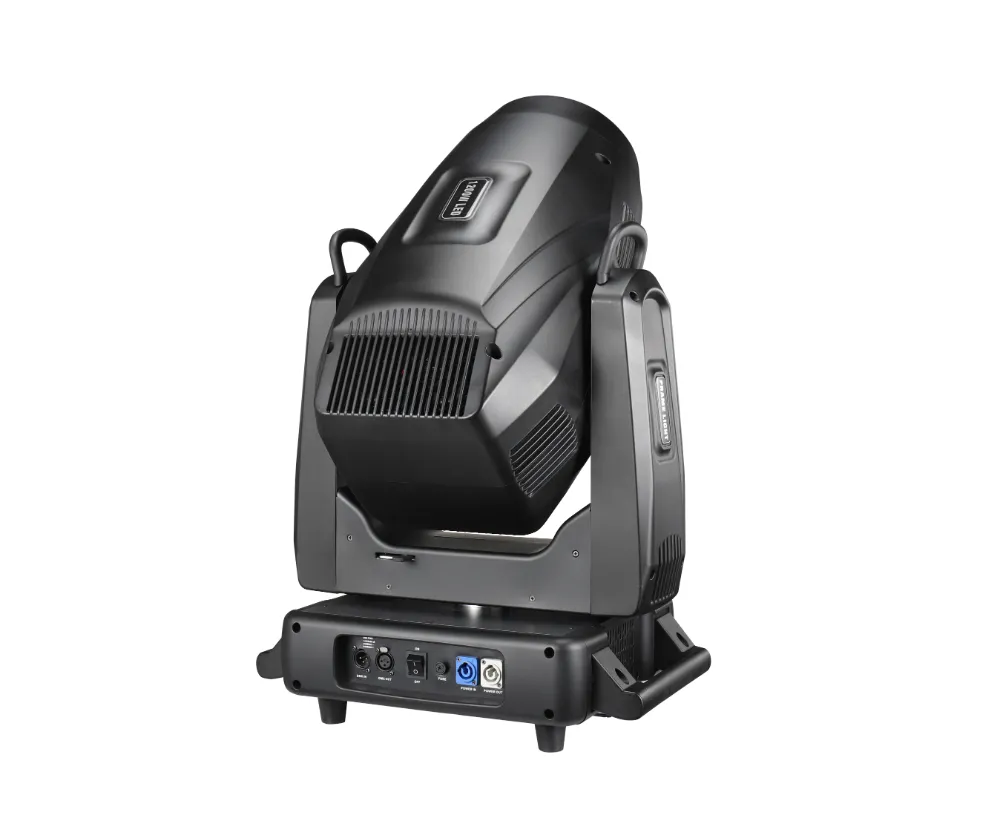

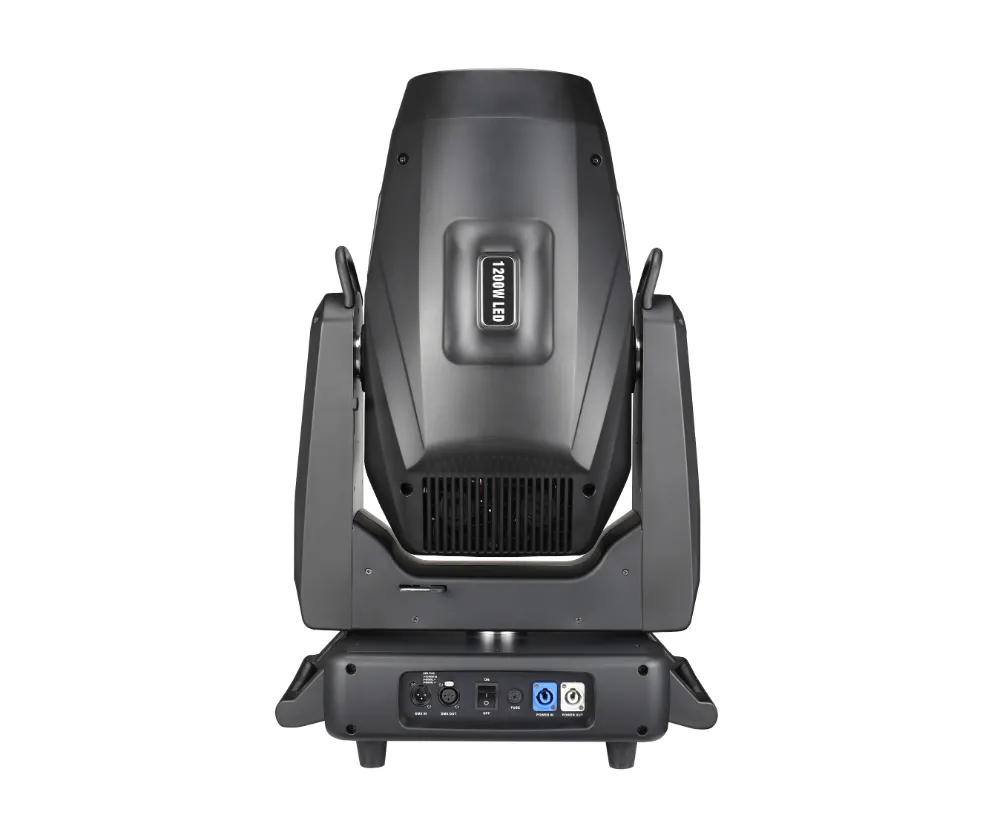

1200W LED BSWF MOVING PROFILE

Light Source:

Input voltage: AC100-240V, 50/60Hz

Rated power: 1400W

Light source: 1021W LED module

LED life: 20,000 hours

Color temperature: 6500K

Color rendering index: Standard mode Ra>70, high CRI mode Ra>90

Luminous flux: 38000LM

Movement:

Pan: 540° (16 bit precision scanning)

Tilt: 270° (16 bit precision scanning)

Pan/Tilt: Five-phase motor with magnetic encoding positioning function

Control and programming:

Signal interface: three-pin XLR (five-pin XLR optional)

Control mode: DMX512, RDM, Auto Mode, master-slave, Sound activation

Channel mode: 36CHs

Construction:

Caliber: 150mm Frontal lens for greater performance

Display system: 2.8-inch touch LCD display, Chinese and English display, 180-degree rotation

Product appearance: flame retardant, high temperature resistance, folding clamp

Protection rate: IP20

Working environment: 0-45℃

Effect:

Fixed color: 6 colors + open position

Color mixing system: independent CMY color mixing system

Color temperature adjustment: independent CTO 2800K-6500K linear adjustment

Prisms: Rotating 3-faced prism+6-faced linear prism, two prisms can be overlaid

Effect wheel: dynamic effects such as stunning simulated dynamic flames, gurgling water, etc.

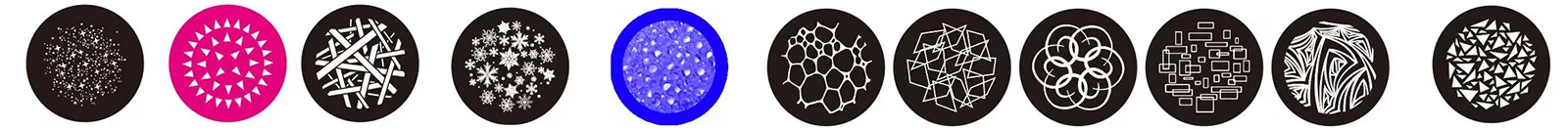

Fixed Gobo wheel: 11 plug-in fixed gobos with an outer diameter of 25.4mm+open position

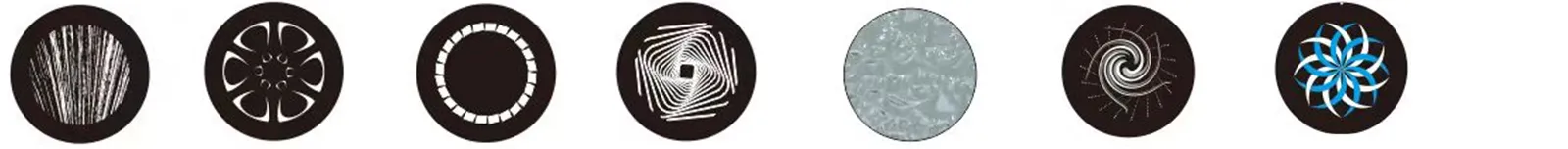

Rotating gobo Wheel: 7 gobos (pluggable), outer diameter 26.9mm, effective diameter 16.5mm, thickness 1.1mm+Open position

Framing system: 4 Individually positionable Shutter Blades, each piece can be closed separately and can be rotated +/- 90°

Frost system: Dual atomization system

Iris system: 6%~100% smooth adjustment

Beam Aperture: 5.5°~60° fast motorized linear zoom

Dimming system: 0-100% linear adjustment

Strobe system: the highest frequency can reach 25Hz, and random strobe and pulse strobe can be selected

Rigging:

2 Omega brackets fasteners for quick and convenient installation, with four different fastening options

Packaging:

Product size: 510*345*800(mm)

Carton size: 730*690*590 (mm)

Product net weight: 43KG

Product gross weight: 51.5KG
