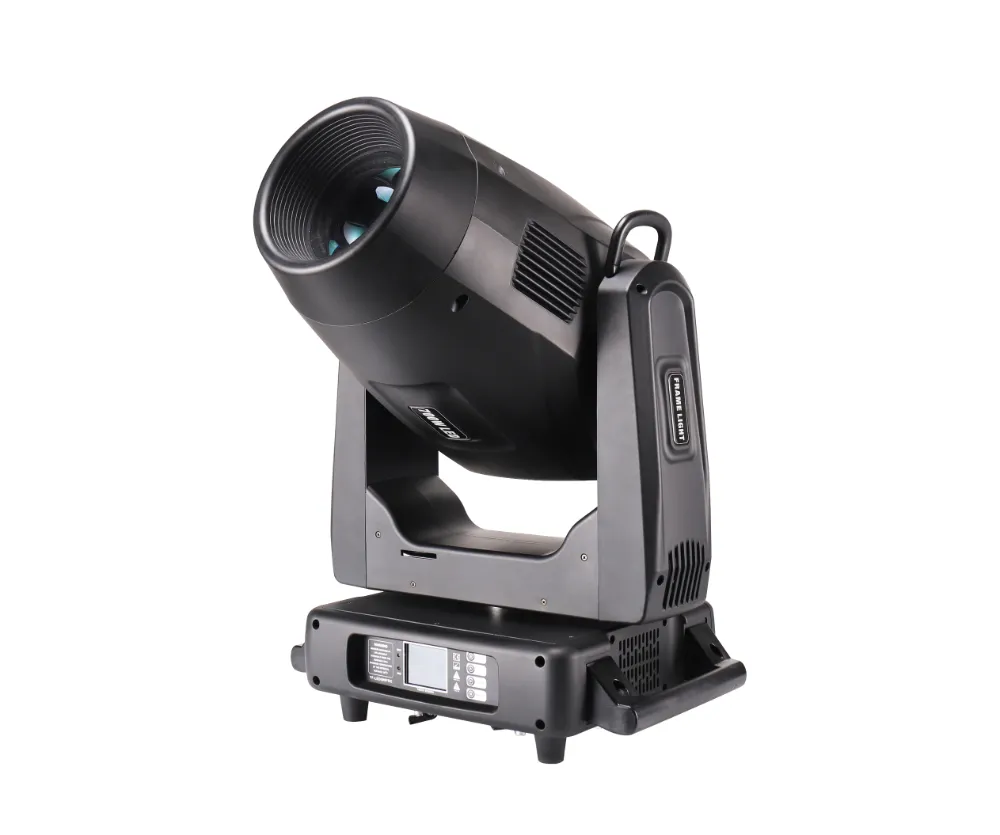

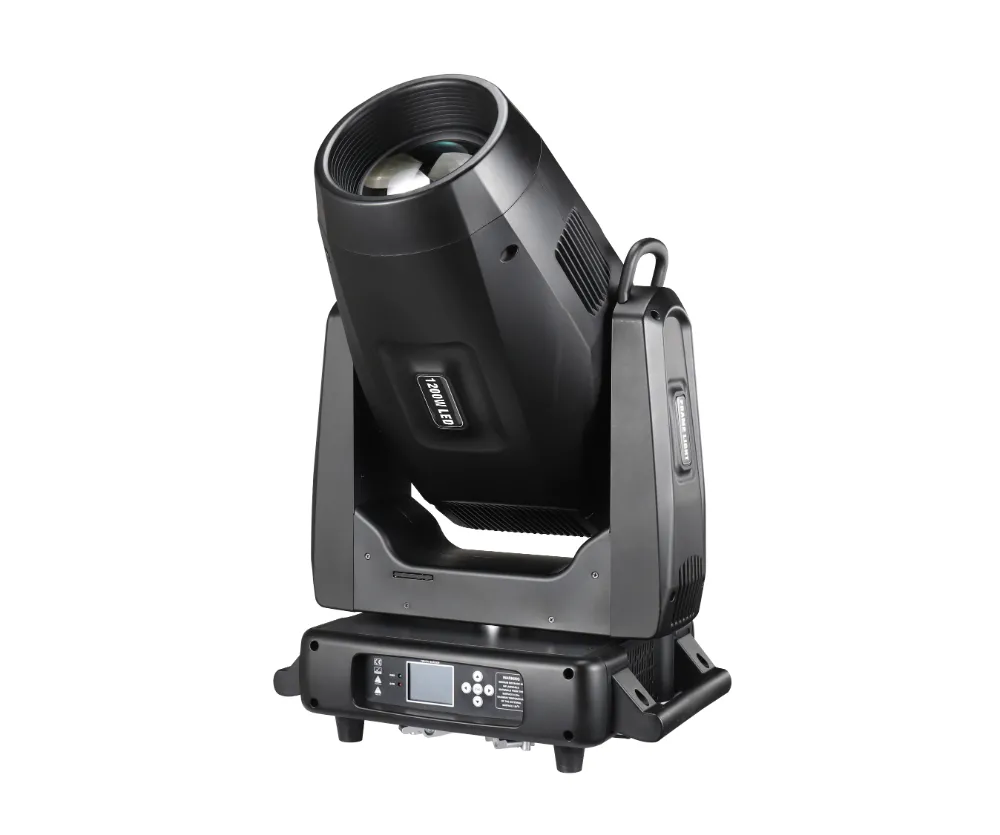

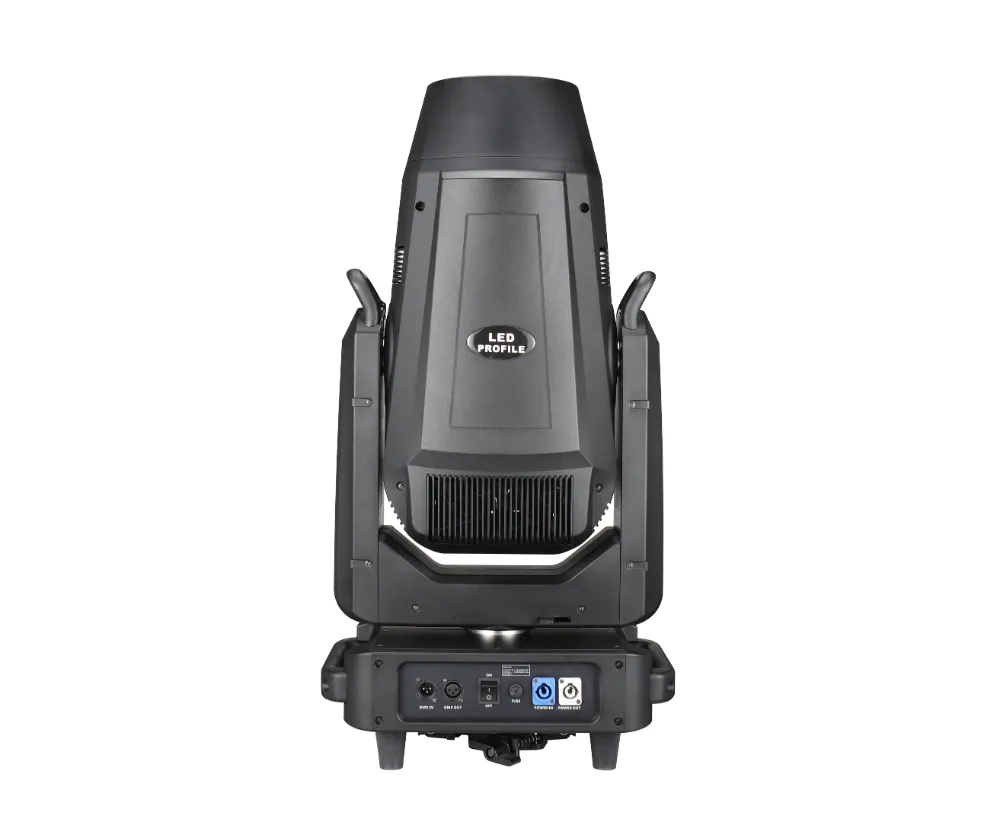

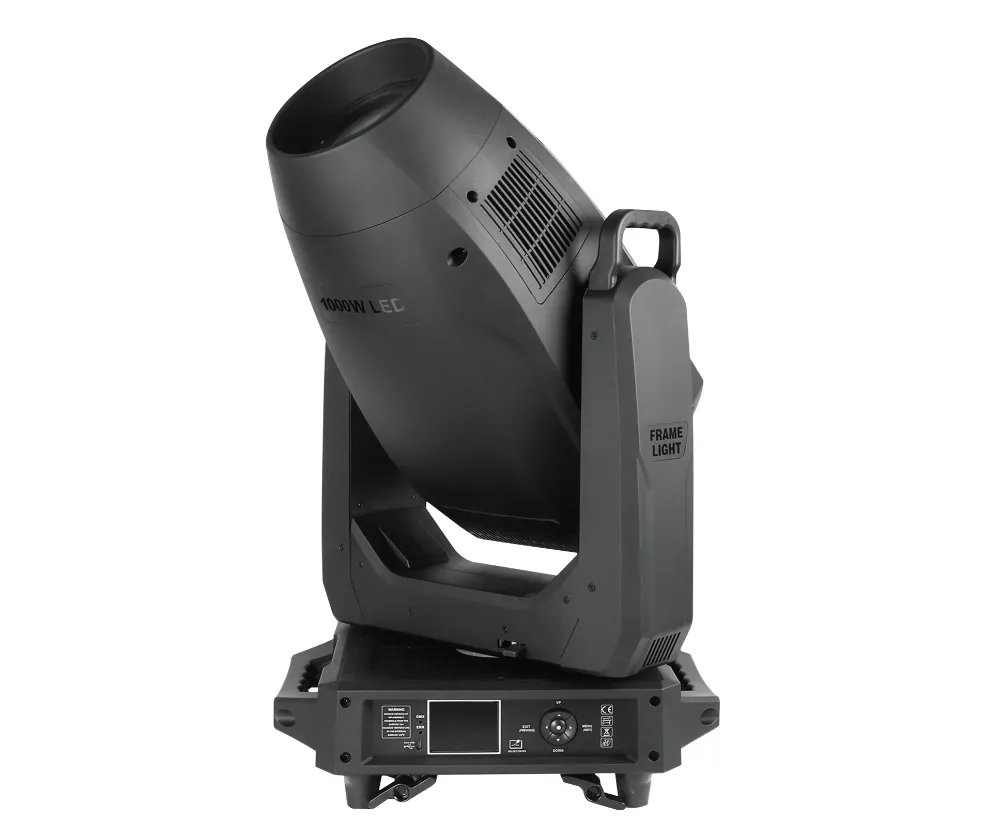

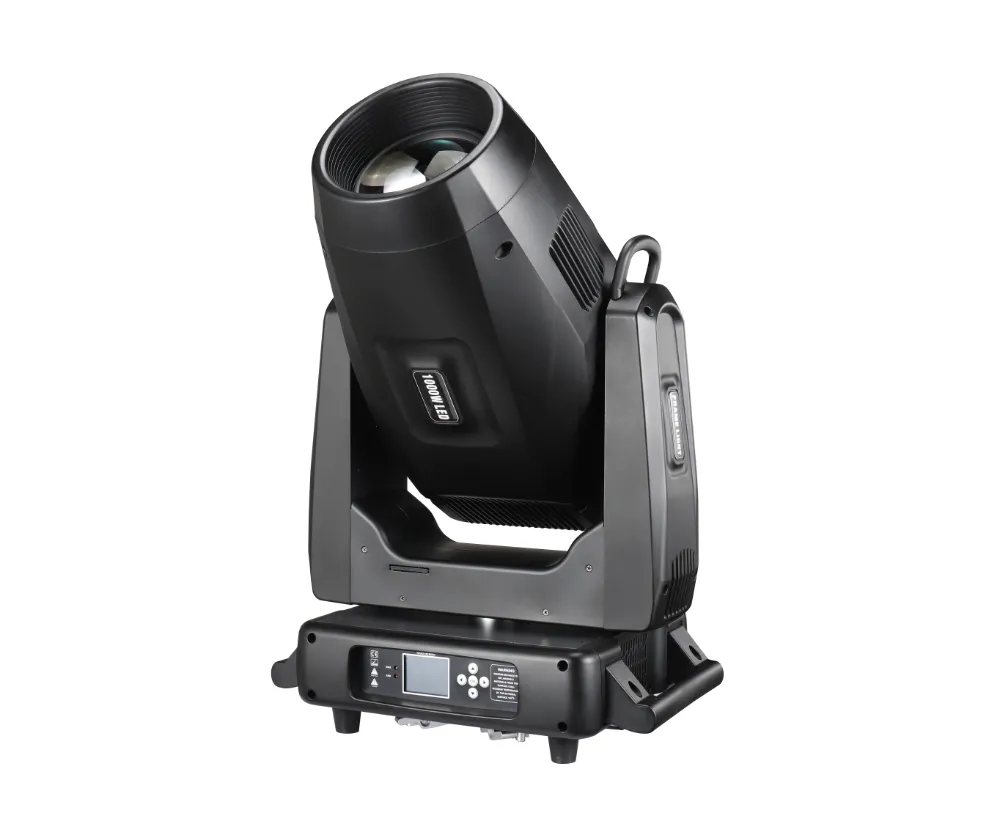

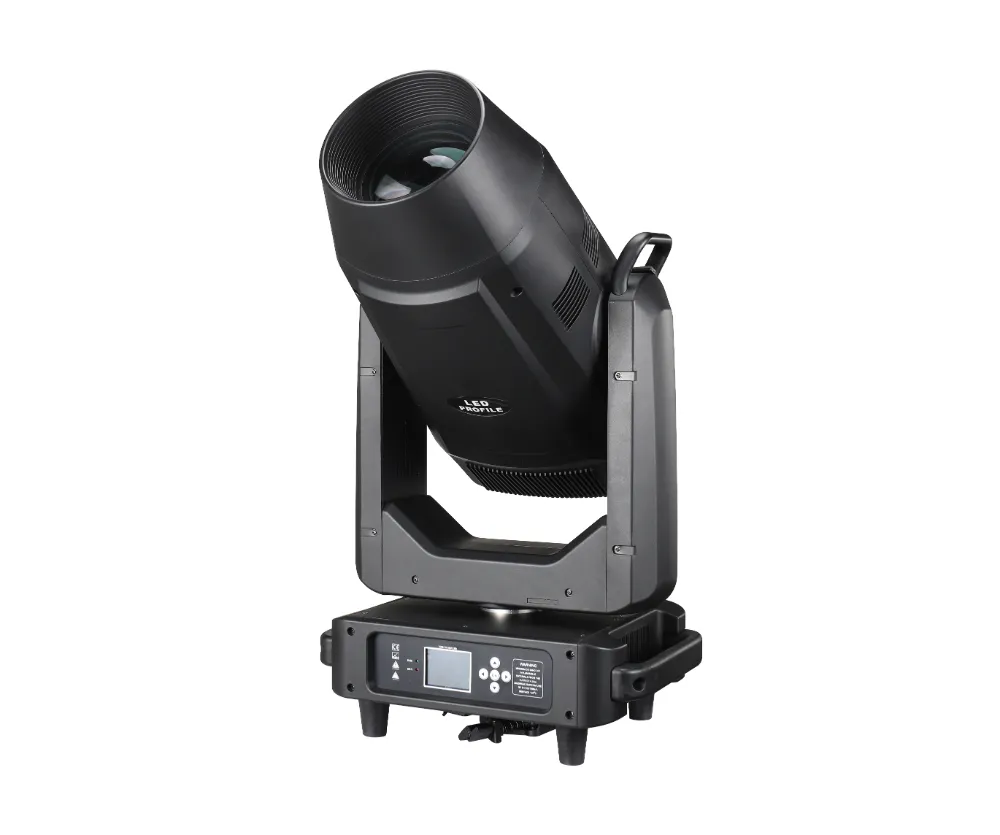

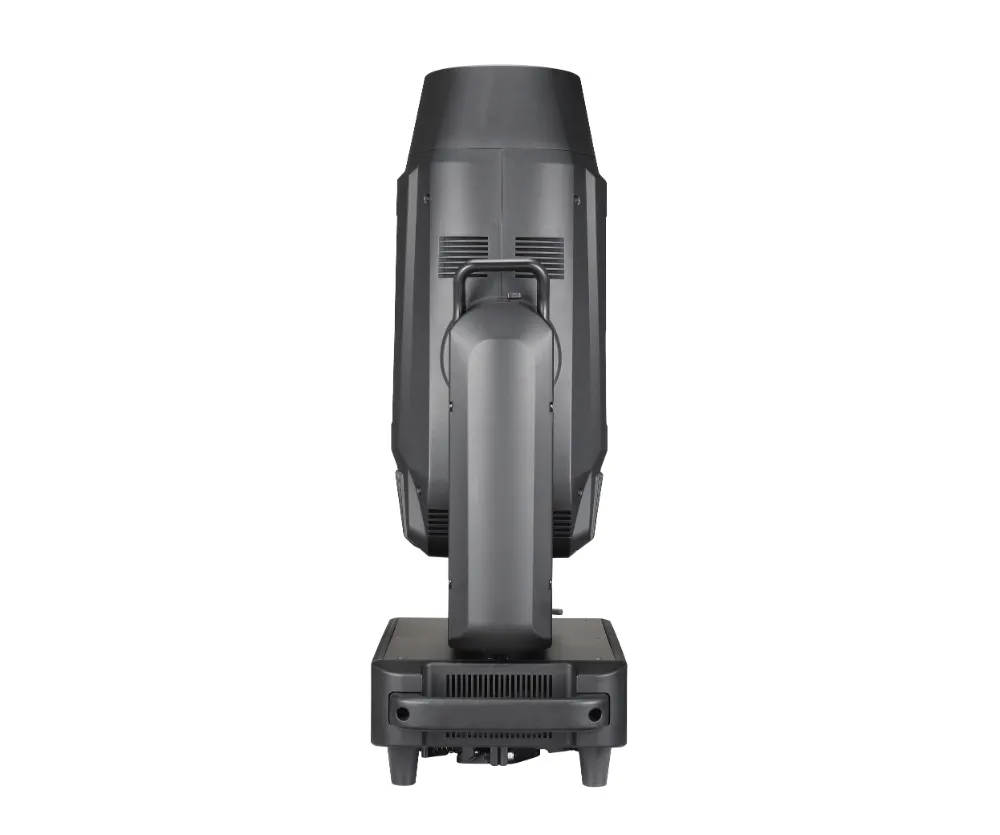

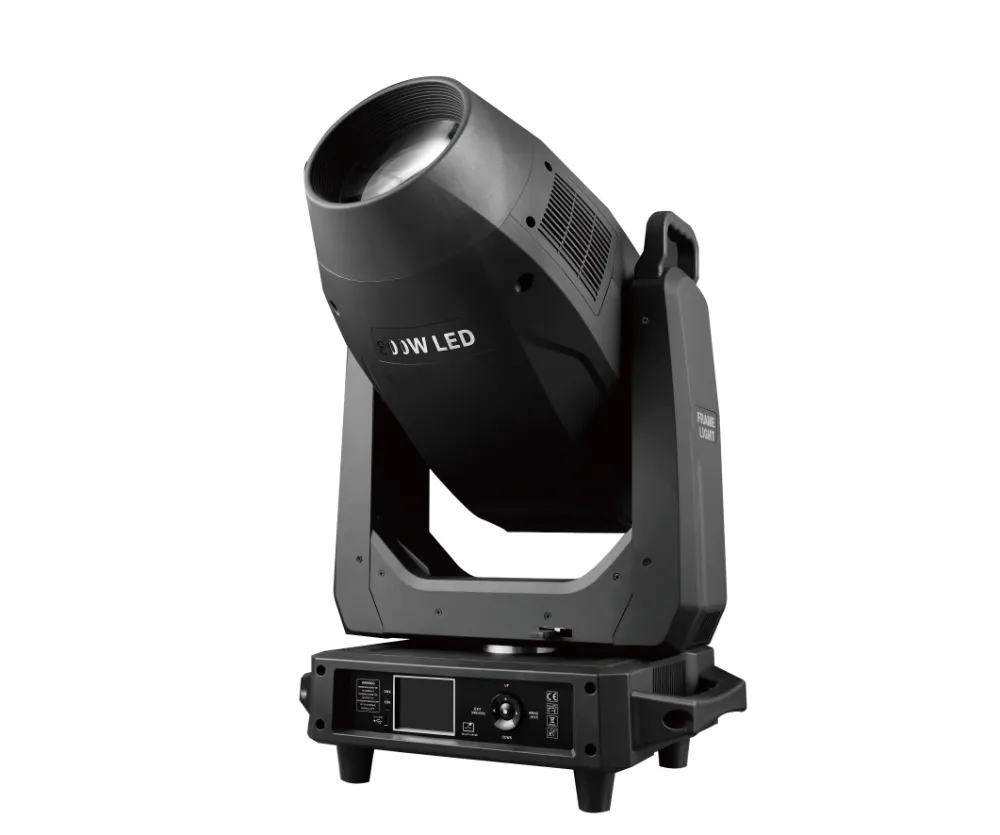

600W LED BSWF MOVING PROFILE

 Light Source:

Input voltage: AC100-240V, 50/60Hz

Rated power: 900W

Light source: 600W LED module

LED life: 20,000 hours

Color temperature: 6800K

Color rendering index: Standard mode Ra>72, high CRI mode Ra>90

 Movement:

Pan: 540° (16 bit precision scanning)

Tilt: 270° (16 bit precision scanning)

Pan/Tilt: Five-phase motor with magnetic encoding positioning function

Luminous flux: 24000LM

 Control and programming:

Signal interface: three-pin XLR (five-pin XLR optional)

Control mode: DMX512, RDM, Auto Mode, master-slave, Sound activation

Channel mode: 36CHs

 Construction:

Caliber: 138mm Frontal lens for greater performance

Display system: 2.7-inch touch LCD display, Chinese and English display, 180-degree rotation

Product appearance: flame retardant, high temperature resistance, folding clamp

Protection rate: IP20

Working environment: 0-45℃

 Effect:

Fixed color: 6colors + open position+CTO

Color mixing system: independent CMY color mixing system

Color temperature adjustment: independent CTO 2500K-7000K linear adjustment

Prisms: Rotating 3-faced prism

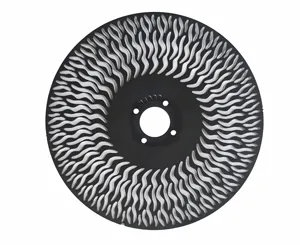

Effect wheel: dynamic effects such as stunning simulated dynamic flames, gurgling water, etc.

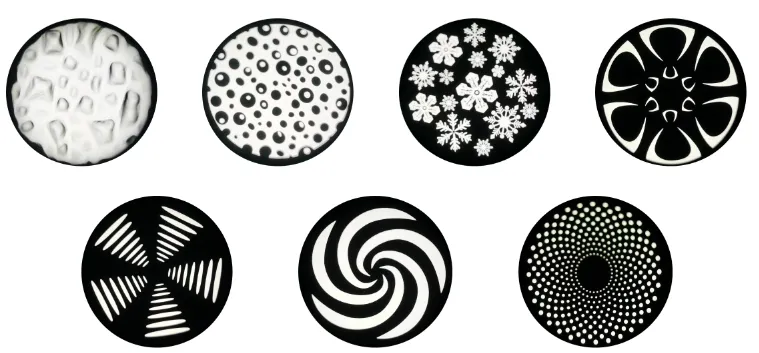

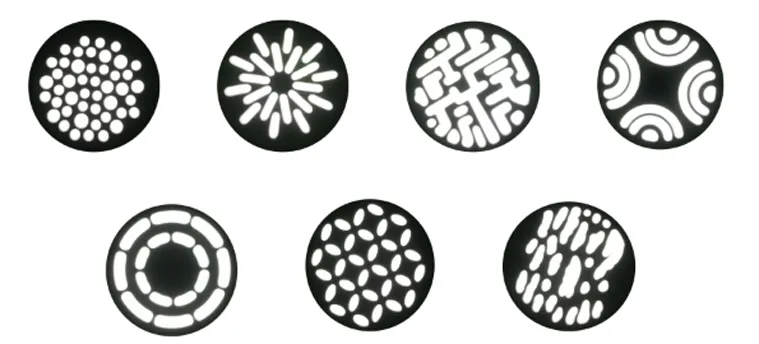

Fixed Gobo wheel: 7 fixed gobos +open position

Framing system: 4 Individually positionable Shutter Blades, each piece can be closed separately and can be rotated +/- 90°

Frost system: 0-100% linear atomization

Iris system: 5%~100% smooth adjustment

Beam Aperture: 4.5°~50° fast motorized linear zoom

Dimming system: 0-100% linear adjustment

Strobe system: the highest frequency can reach 25Hz, and random strobe and pulse strobe can be selected

 Packaging:

Product size: 424*286*770(mm)

Carton size: 730*690*590 (mm)

Product net weight: 35KG

Product gross weight:4.5KG
