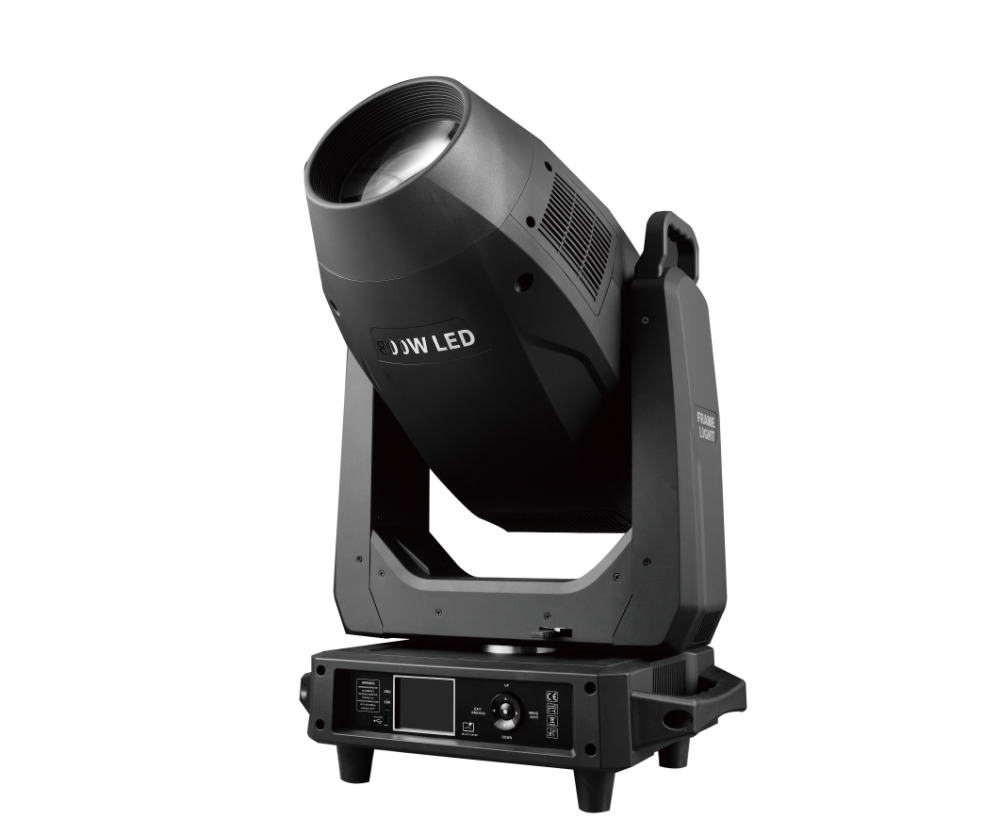

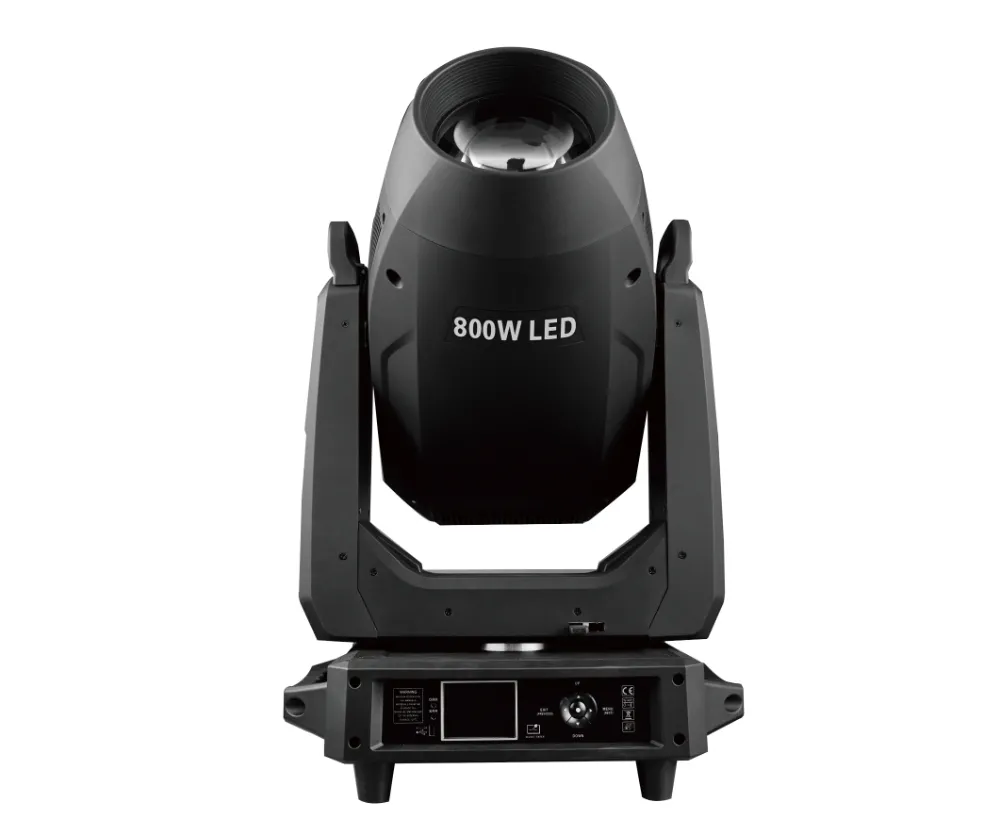

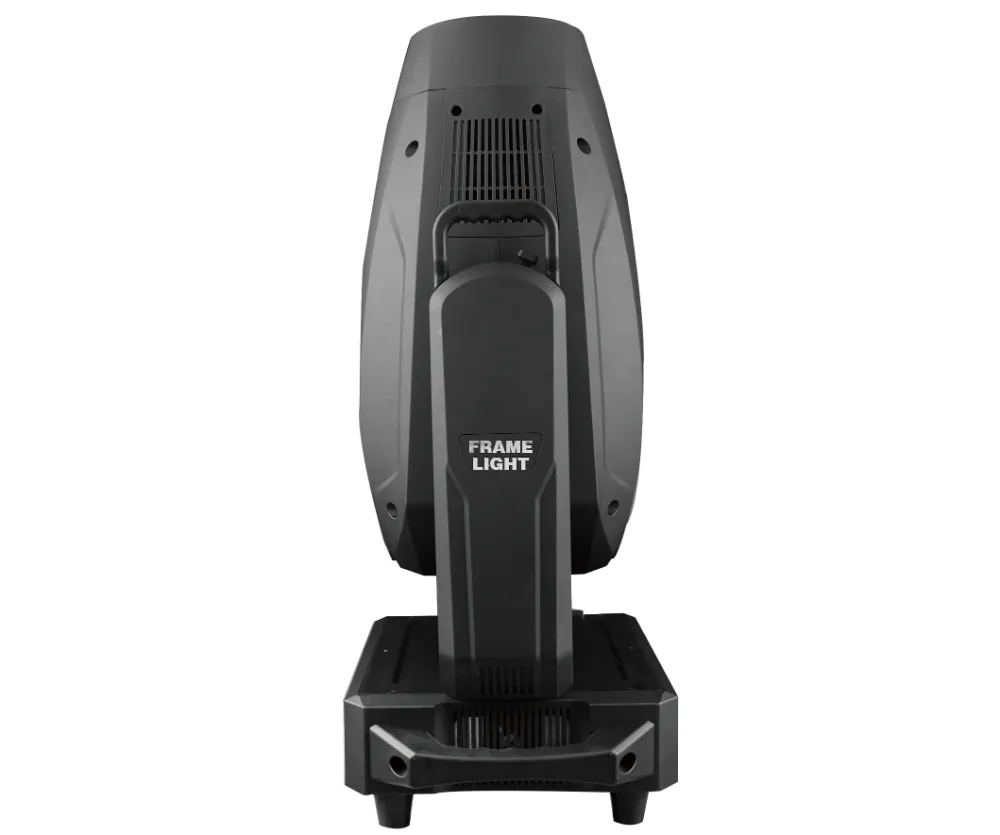

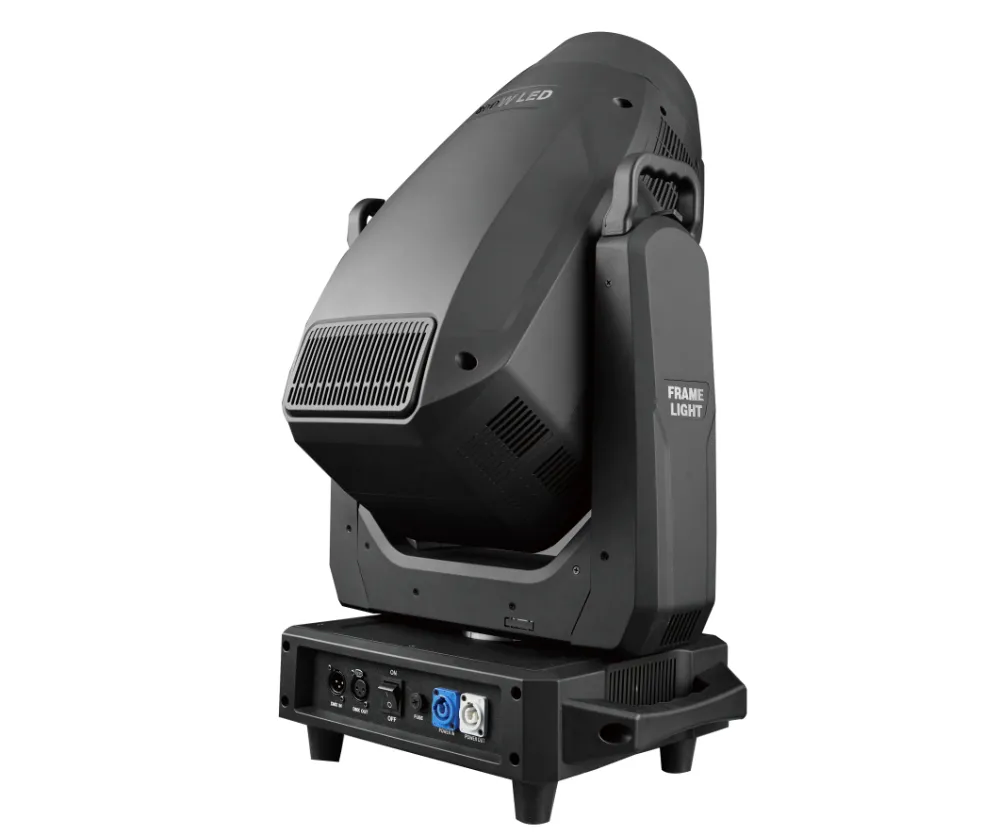

Mini800W LED BSWF MOVING PROFILE

 Light Source:

Input voltage: AC100-240V, 50/60Hz

Rated power: 900W

Light source: 600W LED module

LED life: 20,000 hours

Color temperature: 6500K

Color rendering index: Standard mode Ra>70, high CRI mode Ra>90

 Movement:

Pan: 540° (16 bit precision scanning)

Tilt: 270° (16 bit precision scanning)

Pan/Tilt: Five-phase motor with magnetic encoding positioning function

Luminous flux: 22000LM

 Control and programming:

Signal interface: three-pin XLR (five-pin XLR optional)

Control mode: DMX512, RDM, Auto Mode, master-slave, Sound activation

Channel mode: 36CHs/42Chs/60CHs/41CHs

 Construction:

Caliber: 130mm Frontal lens for greater performance

Display system: 2.8-inch touch LCD display, Chinese and English display, 180-degree rotation

Product appearance: flame retardant, high temperature resistance, folding clamp

Protection rate: IP20

Working environment: 0-45℃

 Effect:

Fixed color: 6colors + open position

Color mixing system: independent CMY color mixing system

Color temperature adjustment: independent CTO 2700K-7000K linear adjustment

Prisms: 4-faced prism+6-faced linear prism, two prisms can be overlaid

Effect wheel: dynamic effects such as stunning simulated dynamic flames, gurgling water, etc.

Fixed Gobo wheel: 7 Plug in fixed gobos +open position

Rotating gobo Wheel: 8 gobos (pluggable)+ Open position

Framing system: 4 Individually positionable Shutter Blades, each piece can be closed separately and can be rotated +/- 120°

Frost system: 0~100% linear atomization

Iris system: 6%~100% smooth adjustment

Beam Aperture: 5°~50° fast motorized linear zoom

Dimming system: 0-100% linear adjustment

Strobe system: the highest frequency can reach 25Hz, and random strobe and pulse strobe can be selected

 Rigging:

2 Omega brackets fasteners for quick and convenient installation, Integrated Folding Clamps

 Packaging:

Product size: 416*704*300(mm)

Carton size: 505*365*795 (mm)

Product net weight: 30KG

Product gross weight: 34KG
