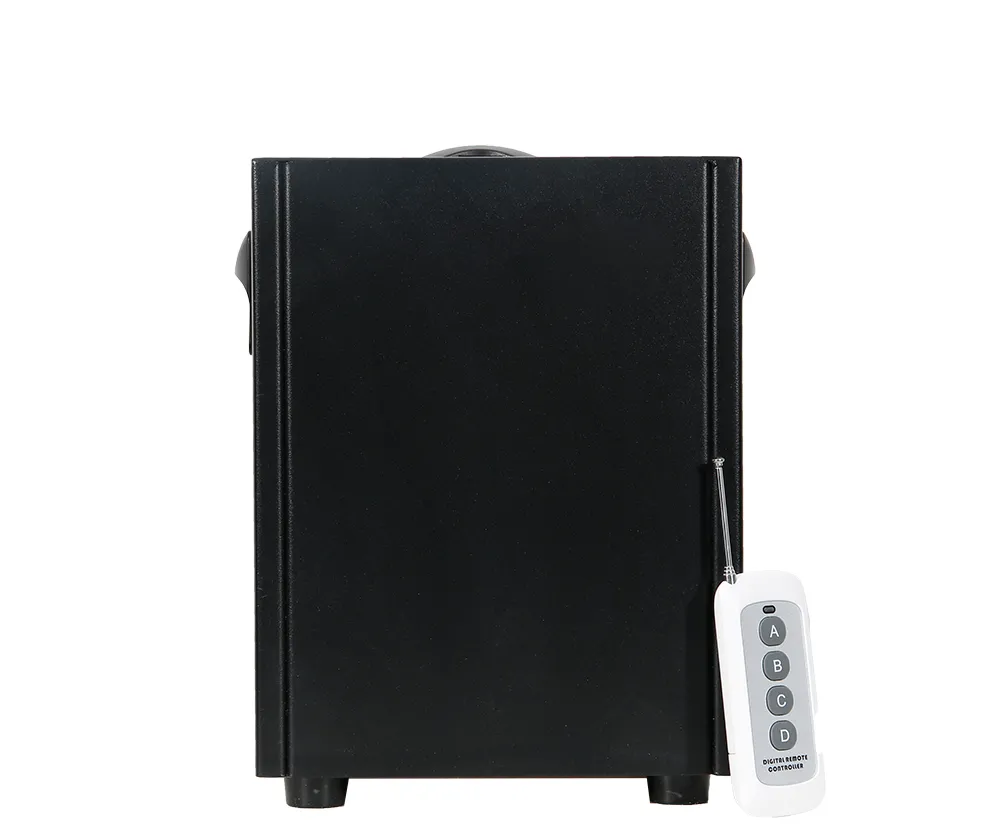

WS-500P
Features:
Safety, without gunpowder; Much safer than using traditional pyrotechnics.
No hazardous materials; Can be used indoor.
Environmental friendly, no smoke and odor.
Intelligent and digitalized; Recyclable with low consumption.
Easy operation and user friendly.
Up to 15 minutes of effect can be produced from just one-time powder refill.
Adjustable output height up to 5 meters.
Specifications:
AC POWER
Input Voltage & Rate: 220-240 V, 50/60 Hz
Current Limiter Type: Breaker
Current Limiter Specifications: 5 A, 250 V
Total Power Consumption: 600 W
Operating Current: 3.0 A
Power Input Connector: Lockable PowerCon
Power Output Connector (Daisy Chained): Lockable PowerCon
HEATING
Heat Up Time: <3 min
FAN
Type: Blower
Quantity: 1 pc
Input Voltage: 12 V
Current: 0.20 A
Power Consumption of Each Unit: 200 W
Total Power Consumption: 200 W
Output Adjustable: √
Adjustment Range: Level 1-10
CAPACITY
Powder Tank Capacity: 200 g
OUTPUT
Adjustable Volume: √
Volume Adjustment Level/Range: Level 1-5
Max Output Height: Appr. 4~5 m
Powder Consumption @ full volume: Appr. 14.0 g/min
Maximum Continuous Duration @ full volume: Appr. 30 sec
Continuous Output : ×
Max Continuous Output Level: Level 10
Fully-loaded Cumulative Output Duration @ full volume: Appr. 14 min
FEATURES
Physical Thermostat: ×
Electronic Thermo-Control: √
Adjustable Output : √
Adjustable Fan Speed: √
Operation Noise: Appr. 1 m, 80 dB

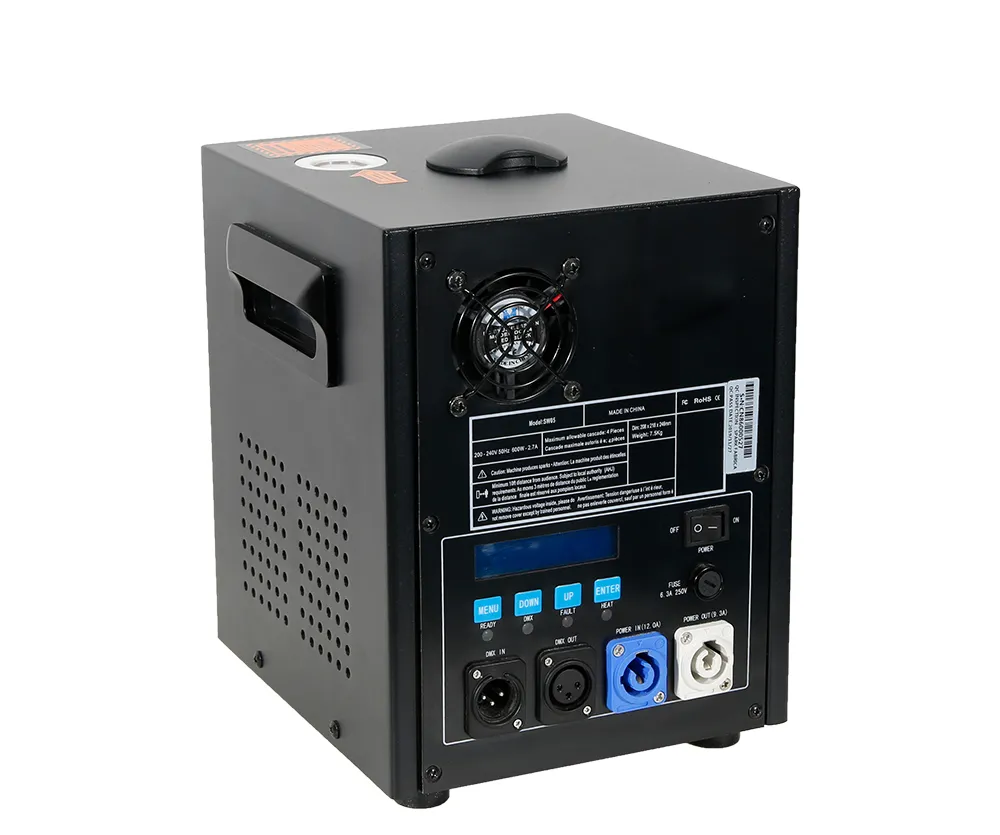

CONTROL
On-device Manual Control : LCD control board
Wireless Control: √
Wired Control: ×
Control Protocol: DMX-512
DMX Channel Range: 2/4CH
Data Connectors: 3-pin XLR
RFID Card: √
ACCESSORY
Power Cord: √
Wireless Controller Model: √
CONSUMABLE
Consumable: Spark Seed
WEIGHT & DIMENSIONS
Net Weight: 10 kg / 22 lb.
Gross Weight: 11.5 kg / 25.4 lb.
Machine Dimensions: 205 × 250 × 316 mm / 8.1 × 9.8 × 12.4 in.
Packing Dimensions: 290 × 335 × 415 mm / 11.4 × 13.2 × 16.3 in.
