L1 SPOT600/LED
Light Source:
Input voltage: AC100-240V, 50/60Hz
Rated power: 600W
Light source: 550W LED module
LED life: 20,000 hours
Color temperature: 6500K
Movement:
Pan: 540° (16 bit precision scanning)
Tilt: 270° (16 bit precision scanning)
Pan/Tilt: Five-phase motor with magnetic encoding positioning function
Control and programming:
Signal interface: three-pin XLR (five-pin XLR optional)
Control mode: DMX512, RDM, Auto Mode, master-slave, Sound activation
Channel mode: 25/35CHs
Construction:
Caliber: 138mm Frontal lens for greater performance
Display system: 2.8-inch touch LCD display, Chinese and English display, 180-degree rotation
Product appearance: flame retardant, high temperature resistance, folding clamp
Protection rate: IP20
Working environment: 0-45℃
Effect:
Fixed color: 8colors + open position+CMY+CTO
Prisms: Rotating 6-Linear prism+8-faced prism, two prisms can be overlaid
Effect wheel: dynamic effects such as stunning simulated dynamic flames, gurgling water, etc.
Fixed Gobo wheel: 12 fixed gobos +open position
Rotating Gobo Wheel: 7 plug in gobos+open(diametter 22.8mm, effective diameter 14mm, thickmess: 1.1mm)
Frost system: 0-100% linear atomization
Beam Aperture: 3°~45° fast motorized linear zoom
Dimming system: 0-100% linear adjustment
Strobe system: the highest frequency can reach 25Hz, and random strobe and pulse strobe can be selected
Rigging:
2 Omega brackets fasteners for quick and convenient installation, Integrated Folding Clamps
Packaging:
Product size: 380*274*700mm
Carton size: 750*360*470 (mm)
Product net weight: 23.5KG
Product gross weight: 27.5KG

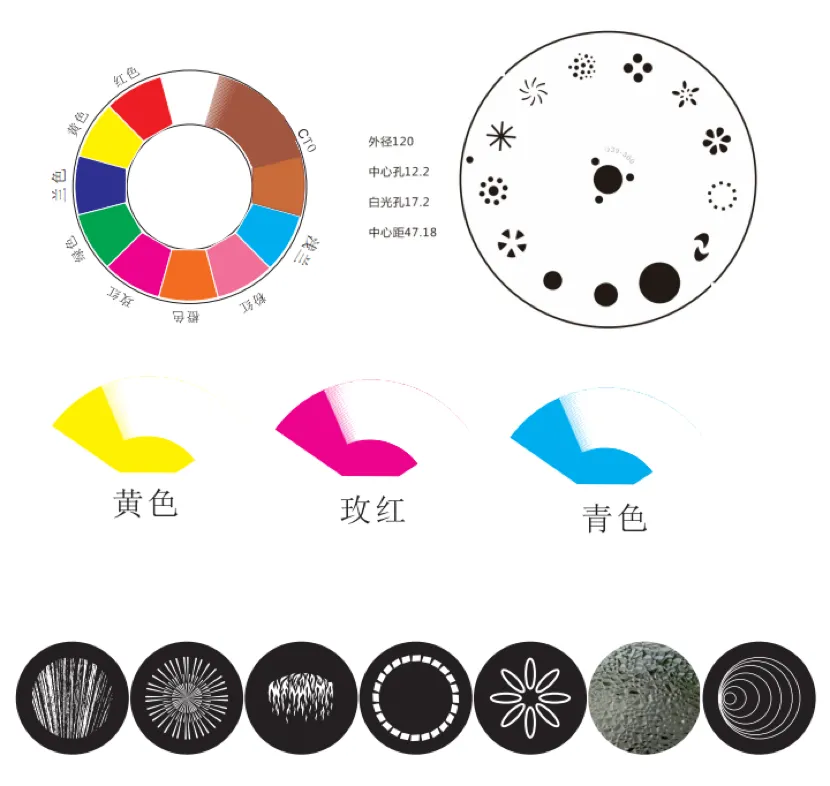

Color Wheel+Fixed Gobo Wheel+Rotating Gobo Wheel
