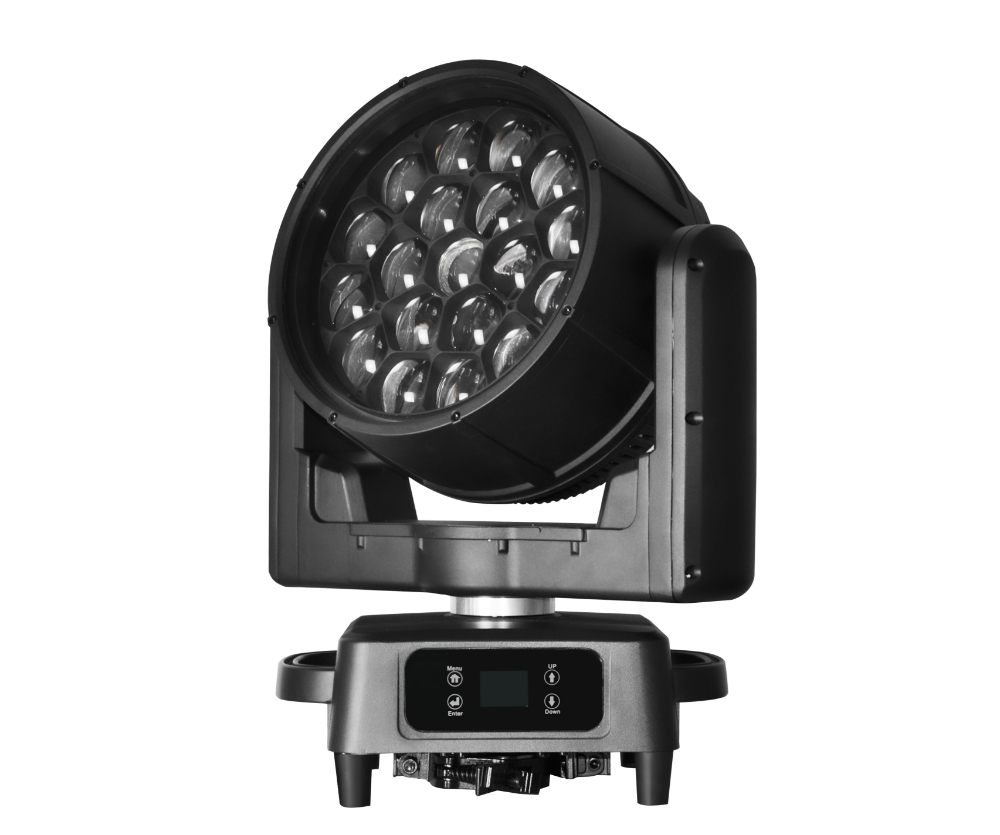

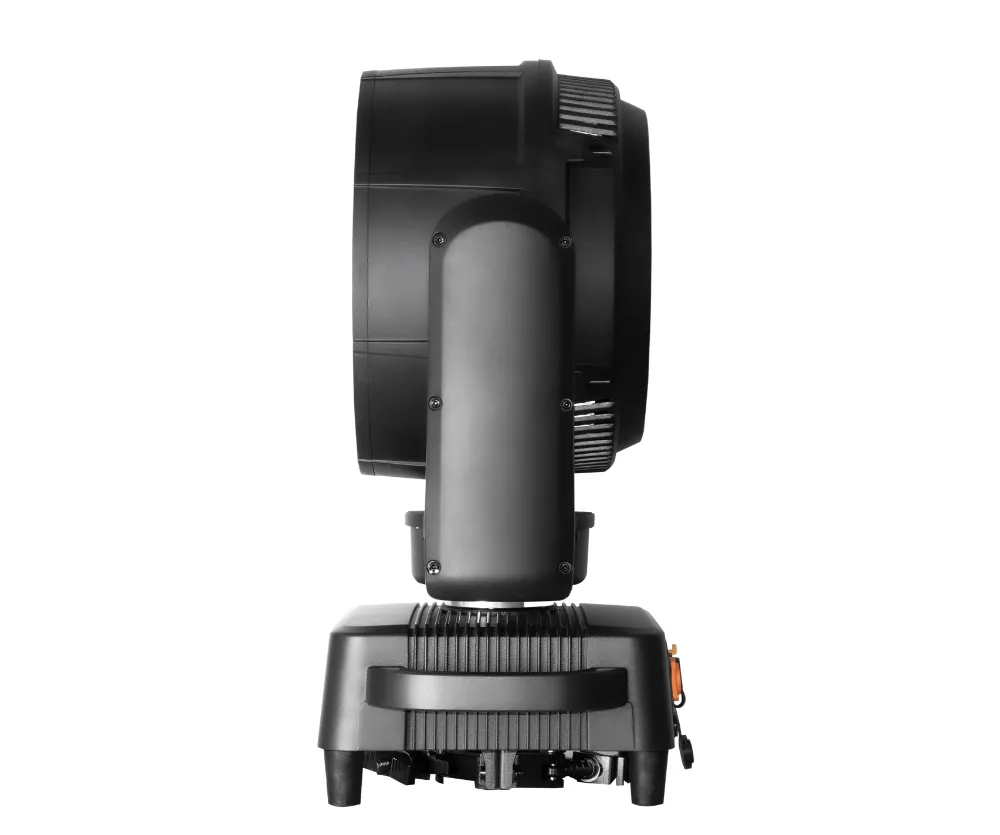

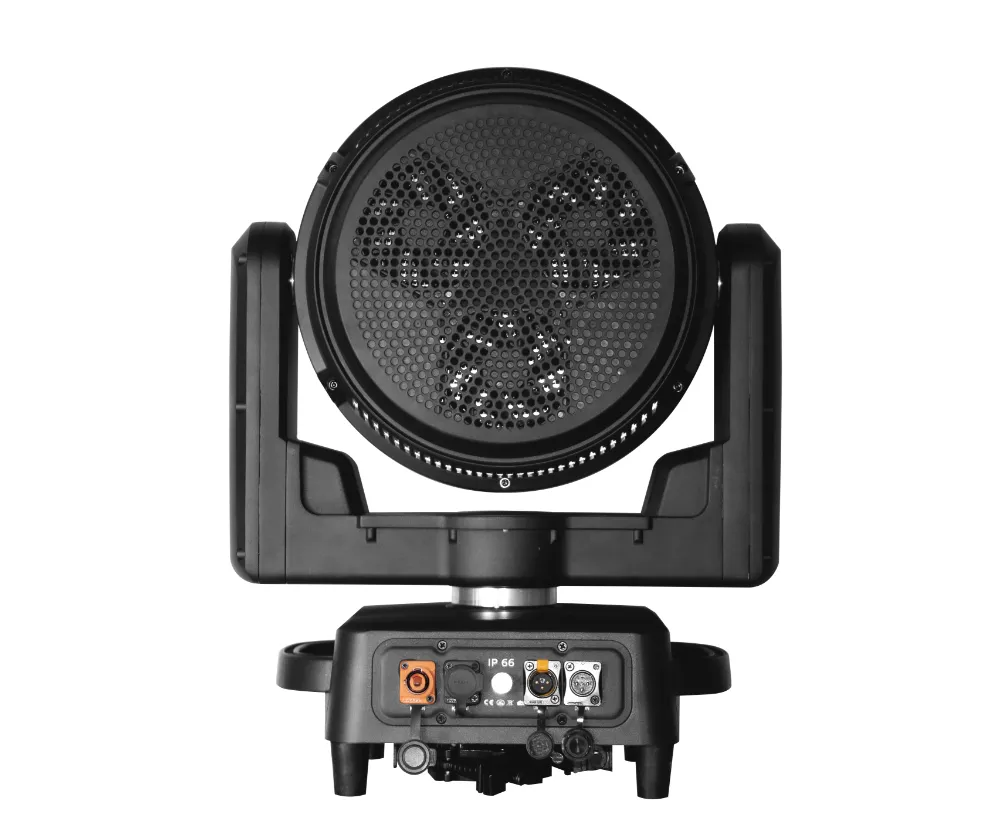

CY-WS StageFlow 19IP
Light Source:
Input voltage: AC100-240V, 50/60Hz
Rated power: 100W
Light source: 19x40W LED RGBW (Osram Optional)
LED life: 30,000 hours
Movement:
Pan: 540° (16 bit precision scanning)
Tilt: 270° (16 bit precision scanning)
Front Lens can be rotated Infinitely
Control and programming:
Signal interface: three-pin XLR (five-pin XLR optional)
Control mode: DMX512, RDM, Auto Mode, master-slave, Sound activation
Channel mode: 21CHs/22CHs/+RGB/22CHs+RGBW/36CHs+RGB/36CHs+RGBW
Construction:
Product appearance: flame retardant, high temperature resistance, folding clamp
Protection rate: IP65
Working environment: 0-45℃
Effect:
Beam Aperture: 2°~60° fast motorized linear zoom
Dimming system: 0-100% linear adjustment
Strobe system: 0.3~25 times/second, optional synchronous or asynchronous random strobe
Focus adjustment: 2°-60° DMX linear focus, with automatic focus function
Color temperature control: built-in CTO DMX linear dimming
Effect modes: (Swirl, Kaleidoscope, Dye, Beam)
The front mirror plate has variable direction and infinite rotation, seamless splicing mirror plate, aspherical lens structure, single point control of lamp beads, light strip effects: strobe, horse racing effect, with built-in program
Individual LED control - Single pixel control
Sparkle channel for dynamic effects
Countless color and pattern combinations
Optimised color mixing behaviour
High-resolution, steplessly variable dimmer 0–100%
Color-accurate dimming
Electronic strobe with pulse and random effects
Rigging:
2 Omega brackets fasteners for quick and convenient installation,
Packaging:
Product size: 464*526*333mm
Carton size: (mm)
Product net weight: 22KG
Product gross weight: KG
